Vehicle Exploded View - APRILIA QUASAR 50 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

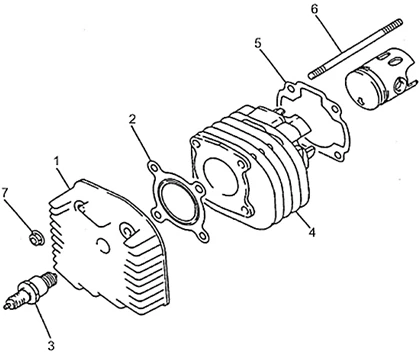

Moteur : 29.01 GROUPE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/307/Quasar_50_2003_29.01.PNG)
1 |
Culasse |
||||||
|
1 |
Culasse |
||||||
|
2 |
Joint tête |
||||||
|
2 |
AP8910024 - GUARNIZIONE TESTA More informationQuantity required : 1 |
||||||
|
3 |
CANDELA NGK BP7HS |
||||||
|
4 |
Cylindre |
||||||
|
4 |
AP8910018 - CILINDRO More informationQuantity required : 1 |
||||||
|
5 |
Joint base cylindre |
||||||
|
5 |
Joint base cylindre |
||||||
|
6 |
AP8910336 - PRIGIONIERO TESTA M7X70 More informationQuantity required : 4 |
||||||
|
6 |
Vis sans tête |
||||||
|
7 |
Ecrou bridé |
