Vehicle Exploded View - APRILIA QUASAR 50 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

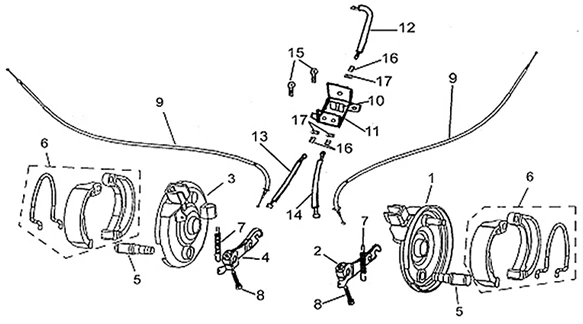

Chassis : 28.22 FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/307/Quasar_50_2003_28.22.PNG)
1 |
Plaque porte-sabots D. |
||||||
|
2 |
Levier frein avant G |
||||||
|
2 |
Levier frein |
||||||
|
3 |
Plaque porte-sabots G. |
||||||
|
4 |
Levier frein avant D |
||||||
|
4 |
Levier frein avant D |
||||||
|
5 |
Came frein AV |
||||||
|
6 |
Sabots à ress-paire |
||||||
|
7 |
Res. hélic. compr |
||||||
|
8 |
Vis bride |
||||||
|
9 |
Câble frein avant |
||||||
|
10 |
Dedoublereur |
||||||
|
11 |
Plaque support |
||||||
|
12 |
Câble frein avant |
||||||
|
13 |
Câble frein AV D |
||||||
|
14 |
Câble frein AV G |
||||||
|
15 |
VITE AUTOF.M6X8 |
||||||
|
16 |
AP8910535 - INSERTO FILETTATO More informationQuantity required : 3 |
||||||
|
17 |
INSERTO FILETTATO |
