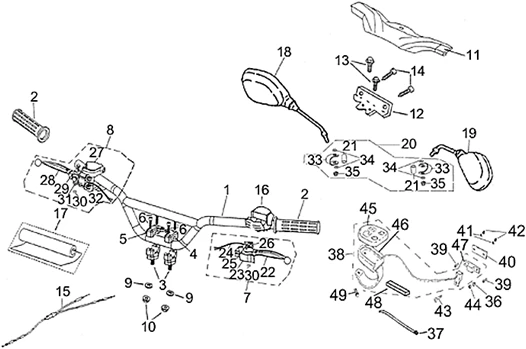

Vehicle Exploded View - APRILIA QUASAR 50 2003

Chassis : 28.24 GUIDON

Guidon

Search

1

	P2R reference
	Maker reference	AP8910270

Guidon

2

	P2R reference
	Maker reference	AP8910272

Couple manettes

3

	P2R reference
	Maker reference	AP8911220

Plaque support

4

	P2R reference	61575
	Maker reference	AP8910281

AP8910281 - CAVALLOTTO

More information

Quantity required : 1

5

	P2R reference
	Maker reference	AP8910282

Cavalier

6

	P2R reference	61587
	Maker reference	AP8910333

AP8910333 - VITE TCEI M6X25

More information

Quantity required : 4

7

	P2R reference
	Maker reference	AP8910273

Levier frein G.cpl.

8

	P2R reference
	Maker reference	AP8910274

Levier frein D.cpl

9

	P2R reference
	Maker reference	AP8910387

Rondelle plate

10

	P2R reference
	Maker reference	AP8910314

DADO M10

11

	P2R reference
	Maker reference	AP8910492

Cache-guidon p.bleu

12

	P2R reference
	Maker reference	AP8910283

Plaque fixation

13

	P2R reference
	Maker reference	AP8910426

Vis bride

14

	P2R reference
	Maker reference	AP8910364

Vis taraud

15

	P2R reference
	Maker reference	AP8910103

Câble gaz

16

	P2R reference
	Maker reference	AP8910194

Déviateur feux

17

	P2R reference
	Maker reference	AP8220662

Protection caoutch.

18

	P2R reference
	Maker reference	AP8910513

Miroir rétroviseur dte

19

	P2R reference	61609
	Maker reference	AP8910514

AP8910514 - SPECCHIO RETROVISORE SX

More information

Quantity required : 1

20

	P2R reference
	Maker reference	AP8911204

Kit miroir

21

	P2R reference	61869
	Maker reference	AP8911205

AP8911205 - DISTANZIALE

More information

Quantity required : 2

22

	P2R reference
	Maker reference	AP8910278

Levier frein G

23

	P2R reference
	Maker reference	AP8910279

Plaquette

24

	P2R reference
	Maker reference	AP8910275

Contacteur de stop

25

	P2R reference	61580
	Maker reference	AP8910305

AP8910305 - VITE TE M6X23

More information

Quantity required : 1

26

	P2R reference
	Maker reference	AP8910529

Support

27

	P2R reference	61574
	Maker reference	AP8910277

AP8910277 - SUPPORTO

More information

Quantity required : 1

28

	P2R reference	61573
	Maker reference	AP8910276

AP8910276 - LEVA FRENO DX

More information

Quantity required : 1

29

	P2R reference
	Maker reference	AP8910304

VITE TE M6X23

30

	P2R reference
	Maker reference	AP8910311

DADO M6

31

	P2R reference	61616
	Maker reference	AP8910551

AP8910551 - NIPPLO

More information

Quantity required : 1

32

	P2R reference
	Maker reference	AP8910540

Interrupteur stop D.

33

	P2R reference	61870
	Maker reference	AP8911206

AP8911206 - SUPPORTO

More information

Quantity required : 2

34

	P2R reference
	Maker reference	AP8911211

Rondelle plate

35

	P2R reference	61582
	Maker reference	AP8910313

AP8910313 - DADO FLANG. M8

More information

Quantity required : 2

36

	P2R reference
	Maker reference	AP8910310

DADO M5

37

	P2R reference	61807
	Maker reference	AP8911021

AP8911021 - FASCETTA

More information

Quantity required : 1

38

	P2R reference
	Maker reference	AP8910871

Tachymètre cpl.

39

	P2R reference
	Maker reference	AP8911040

Vis bride

40

	P2R reference
	Maker reference	AP8910872

Plaquette

41

	P2R reference
	Maker reference	AP8911056

Rondelle plate

42

	P2R reference
	Maker reference	AP8911016

DADO M4

43

	P2R reference	61591
	Maker reference	AP8910354

AP8910354 - VITE AUTOF.M5X12

More information

Quantity required : 1

44

	P2R reference	61596
	Maker reference	AP8910379

AP8910379 - ROSETTA PIANA

More information

Quantity required : 1

45

	P2R reference	61749
	Maker reference	AP8910876

AP8910876 - TACHIMETRO

More information

Quantity required : 1

46

	P2R reference
	Maker reference	AP8910873

Support tachymètre

47

	P2R reference	61748
	Maker reference	AP8910874

AP8910874 - SENSORE

More information

Quantity required : 1

48

	P2R reference
	Maker reference	AP8910875

Caoutchouc

49

	P2R reference
	Maker reference	AP8911041

Vis bride
