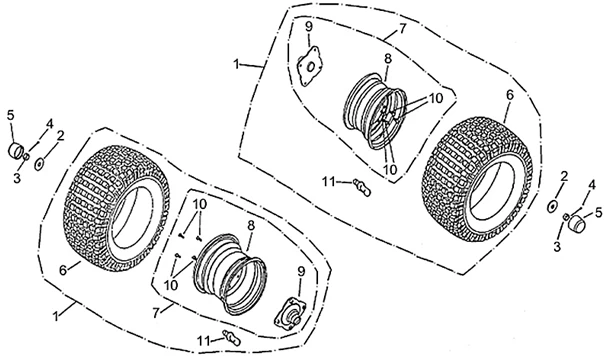

Vehicle Exploded View - APRILIA QUASAR 50 2003 APRILIA

Chassis : 28.21 ROUE ARRIÈRE
Roue arrière
Search
RUOTA POST.16*8-7

1
P2R reference P2R reference
Maker reference Maker reference AP8910216

RUOTA POST.16*8-7

RUOTA POST.18*9.5-87

1
P2R reference P2R reference
Maker reference Maker reference AP8910217

RUOTA POST.18*9.5-87

Rondelle plate

2
P2R reference P2R reference
Maker reference Maker reference AP8910394

Rondelle plate

Ecrou autobloqu.

3
P2R reference P2R reference
Maker reference Maker reference AP8910321

Ecrou autobloqu.

Goupille

4
P2R reference P2R reference
Maker reference Maker reference AP8910405

Goupille

AP8910215 - CAPPUCCIO

5
P2R reference P2R reference 61568
Maker reference Maker reference AP8910215

AP8910215 - CAPPUCCIO

More information

Quantity required : 2

Pneu

6
P2R reference P2R reference
Maker reference Maker reference AP8910213

Pneu

Pneu arrière

6
P2R reference P2R reference
Maker reference Maker reference AP8910220

Pneu arrière

Roue AR nue cpl.

7
P2R reference P2R reference
Maker reference Maker reference AP8910564

Roue AR nue cpl.

Roue AR nue cpl.

7
P2R reference P2R reference
Maker reference Maker reference AP8910565

Roue AR nue cpl.

Roue nue

8
P2R reference P2R reference
Maker reference Maker reference AP8910211

Roue nue

Roue nue

8
P2R reference P2R reference
Maker reference Maker reference AP8910212

Roue nue

Moyeu

9
P2R reference P2R reference
Maker reference Maker reference AP8910479

Moyeu

VITE TE M10X20

10
P2R reference P2R reference
Maker reference Maker reference AP8910437

VITE TE M10X20

AP8910207 - VALVOLA

11
P2R reference P2R reference 61567
Maker reference Maker reference AP8910207

AP8910207 - VALVOLA

More information

Quantity required : 2
