Vehicle Exploded View - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

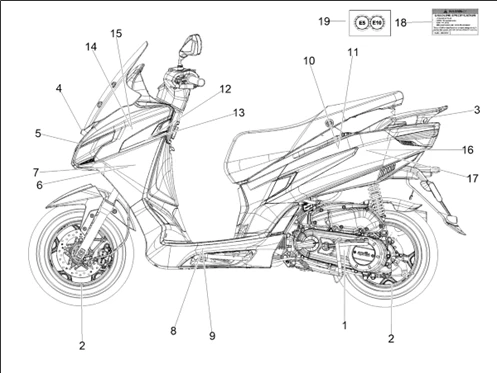

Carrosserie : 02.19 DÉCALCO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_02.19.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/6/3/7/img/127637.jpg)
1 |
2H001199 - MONOGRAMME "I-GET" More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/7/5/img/178575.jpg)
2 |
2H004151 - WHEEL RIM STICKER More informationQuantity required : 2 |
|||||||||
3 |
2H004149000A1 - APRILIA REAR STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/7/7/img/178577.jpg)
3 |
2H004149000A3 - APRILIA REAR STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/7/8/img/178578.jpg)
3 |
2H004149000A2 - APRILIA REAR STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/7/9/img/178579.jpg)
4 |
2H004139 - APRILIA SHIELD STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/8/0/img/178580.jpg)
5 |
2H004617 - SHIELD CENTRAL STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/8/1/img/178581.jpg)
5 |
2H004140 - SHIELD CENTRAL STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/8/2/img/178582.jpg)
6 |
2H004141 - LEFT LATERAL SHIELD STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/8/3/img/178583.jpg)
7 |
2H004142 - RIGHT LATERAL SHIELD STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/8/4/img/178584.jpg)
8 |
2H004143 - LEFT SPOILER APRILIA STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/8/5/img/178585.jpg)
9 |
2H004144 - RIGHT SPOILER APRILIA STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/9/7/img/178597.jpg)
10 |
2H004615 - LEFT SIDE STICKER More informationQuantity required : 1 |
|||||||||
|
10 |
2H004619000A1 - SXR 50 SPORT LEFT SIDE STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/8/7/img/178587.jpg)
10 |
2H004609 - SXR 50 LEFT SIDE STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/8/8/img/178588.jpg)
10 |
2H004619000A2 - SXR 50 SPORT LEFT SIDE STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/8/9/img/178589.jpg)
11 |
2H004618000A1 - SXR 50 SPORT RIGHT SIDE STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/9/0/img/178590.jpg)
11 |
2H004608 - SXR 50 RIGHT SIDE STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/9/1/img/178591.jpg)
11 |
2H004618000A2 - SXR 50 SPORT RIGHT SIDE STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/9/2/img/178592.jpg)
12 |
2H004612 - RIGHT LATERAL SHIELD STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/9/3/img/178593.jpg)
13 |
2H004613 - LEFT LATERAL SHIELD STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/9/4/img/178594.jpg)
14 |
2H004610 - APRILIA RIGHT LATERAL SHIELD STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/9/5/img/178595.jpg)
15 |
2H004611 - APRILIA LEFT LATERAL SHIELD STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/9/6/img/178596.jpg)
16 |
2H004614 - RIGHT SIDE STICKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/4/9/9/img/204499.jpg)
17 |
2H004615 - LEFT SIDE STICKER More informationQuantity required : 1 |
|||||||||
|
18 |
2H002790 - PLAQUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/1/0/3/img/156103.jpg)
19 |
2B0059385 - DECALCO More informationQuantity required : 1 |
|||||||||
