Vehicle Exploded View - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

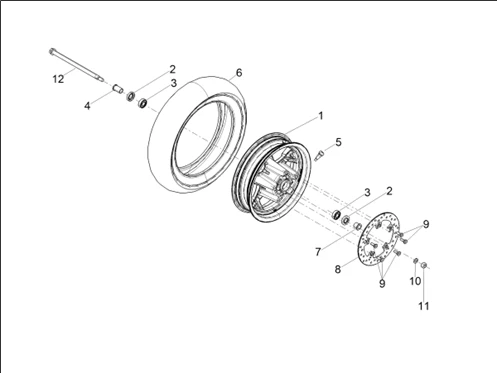

Roues : 05.010 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_05.010.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/7/5/img/181975.jpg)
1 |
1C005216 - ROUE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/0/7/img/127507.jpg)
2 |
1C001322 - CIRCLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
3 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/5/0/4/img/204504.jpg)
4 |
601705 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
5 |
270991 - VALVE More informationQuantity required : 1 |
||||||
6 |
1C006364 - PNEUMATIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/9/img/152899.jpg)
7 |
1C002414 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/4/img/178664.jpg)
8 |
1C005219 - BRAKE DISK D220 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/5/img/178665.jpg)
9 |
1C005075 - FLANGED HEXAGONAL HEAD SCREW More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.jpg)
10 |
709037 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/7/img/66047.jpg)
11 |
NUT - "PIAGGIO GENUINE PART" -261319- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/0/4/img/152904.jpg)
12 |
1C002728 - AXE ROUE AV More informationQuantity required : 1 |
