Vehicle Exploded View - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

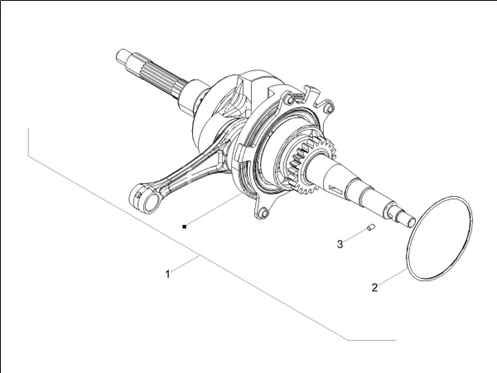

Moteur : 03.16 VILEBREQUIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_03.16.png)
Search
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/7/0/img/181970.jpg)
1 |
SP1A016488 - CRANKSHAFT WITH BEARING AND PINION - SP More informationQuantity required : 1 |
||||||
1 |
SP1A023577 - CRANKSHAFT WITH BALL BEARING AND PINION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/5/0/3/img/204503.jpg)
2 |
1A019675 - BAGUE D'éTANCHéITé (JOINT TORIQUE) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/3/img/66183.jpg)
3 |
287959 - ROULEAU More informationQuantity required : 1 |
All the exploded views of this vehicle
