Vehicle Exploded View - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

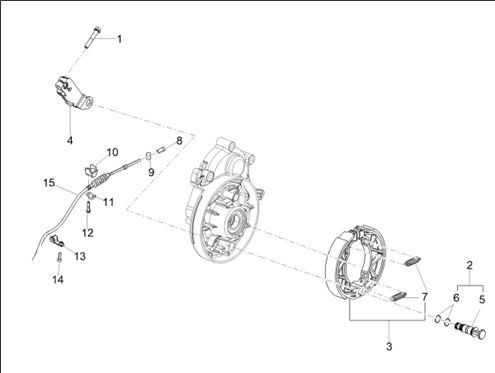

Système de freinage : 06.06 FREIN POSTERIEUR - MÂCHOIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_06.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/1/0/img/152910.jpg)
1 |
1A003063 - VIS More informationQuantity required : 1 |
||||||
2 |
B0164755 - COMPLETE BRAKE LEVER AXLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/1/0/1/img/166101.jpg)
3 |
1C000655R - COUPLE MACHOIRES FREIN More informationQuantity required : 1 |
||||||
|
4 |
1C002607 - LEVIER DU FREIN More informationQuantity required : 1 |
||||||
|
5 |
564112 - ESSIEUX LEVER FR. More informationQuantity required : 1 |
||||||
|
6 |
564134 - O-RING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/7/img/68017.jpg)
7 |
BRAKE SHOE SPRING "PIAGGIO GENUINE PART" COMMON FOR RANGE SCOOTER 50-125 -647384- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
8 |
NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
9 |
REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/1/4/img/152914.jpg)
10 |
1C001642 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/2/img/67072.jpg)
11 |
564645 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/7/0/img/178670.jpg)
12 |
1C004766 - FLANGED HEX HEAD SCREW M6X35 CL10 More informationQuantity required : 1 |
||||||
|
13 |
1C005865 - CLAMP WITH IP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
14 |
709674 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/7/2/img/178672.jpg)
15 |
1C005857 - COMPLETE REAR BRAKE TRANSMISSION More informationQuantity required : 1 |
