Vehicle Exploded View - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

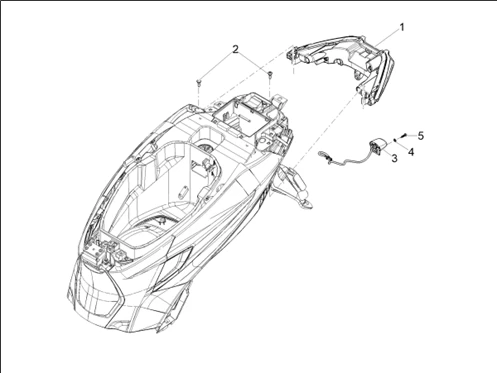

Feux - instruments : 08.03 ECLAIRAGES ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_08.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/8/5/img/178685.jpg)
1 |
1D003349 - COMPLETE REAR LAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/6/7/5/img/85675.jpg)
3 |
REGISTRATION PLATE LIGHT "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018 4STROKE>, NRG 2018>/GILERA 50-125 RUNNER, FUOCO/APRILIA 50 SR MOTARD 2018> 4STROKE -639088 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
4 |
003054 - RONDELLE S00305400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
5 |
267115 - VIS More informationQuantity required : 1 |
