Vehicle Exploded View - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

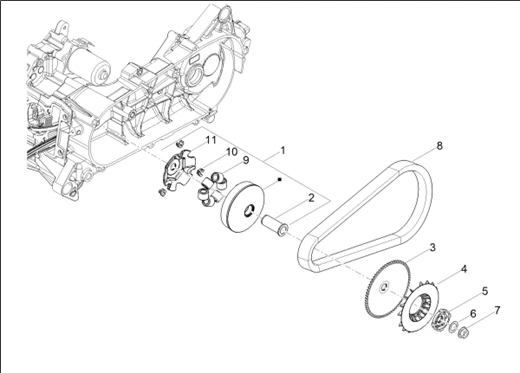

Moteur : 03.24 DEMI-POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_03.24.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/7/1/img/181971.jpg)
1 |
CM310319 - COMPLETE ROLLERS CONTAINER More informationQuantity required : 1 |
||||||
2 |
CM310408 - SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/1/img/66581.jpg)
3 |
DRIVE HALF PULLEY "PIAGGIO GENUINE PART" 50 TYPHOON 2005>, ZIP 2000>, FLY ET 2005>, LIBERTY 2 STROKE 2005>, NRG 2005>, VESPA LX 2005>, VESPA-S 2007>/GILERA 50 STALKER 2005>/APRILIA 50 SR 2012> -479561 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/9/img/69359.jpg)
4 |
FAN - DRIVING PULLEY "PIAGGIO GENUINE PART" 50 TYPHOON 2004>, NRG 2005>, ZIP 2000>, VESPA LX 2005>, FLY 2005>/APRILIA 50 SR 2010>/GILERA 50 STALKER 2003>, RUNNER 2004 -845611 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/4/5/img/70645.jpg)
5 |
KICK STARTER TEETHED BUSH "PIAGGIO GENUINE PART" COMMUN GAMME SCOOTER 50 2 STROKE + 4 STROKE -877075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/9/img/66049.jpg)
6 |
DRIVING PULLEY WASHER (23X15X0,5) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE ET 4 STROKE -265300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
7 |
NUT - FOR VARIATOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289519 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/2/9/img/178629.jpg)
8 |
1A018730 - RCVS BELT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/6/2/1/1/img/196211.jpg)
9 |
GALET/ROULEAU ORIGINE PIAGGIO 50 SXR APRILIA 2021> -CM270201 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/4/img/66234.jpg)
10 |
VARIATOR SLIDING BLOCK "PIAGGIO GENUINE PART" 50 ZIP 1996>, TYPHOON 1996>, FLY 2005>, LIBERTY 1998>, NRG 1998>, VESPA LX 2005>, VESPA-S 2007>/GILERA 50 STALKER, RUNNER 1997>/APRILIA 50 SR 2011> -289931- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/4/img/66594.jpg)
11 |
VARIATOR ROLLERS CONTRAST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -480227- More informationQuantity required : 1 |
