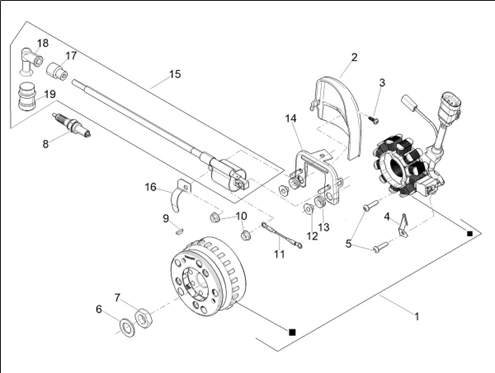

Moteur : 03.30 VOLANT MAGNÉTIQUE / ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_03.30.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/3/4/img/178634.jpg)
1 |
1A019410 - COMPLETE FLYWHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/6/0/img/164260.jpg)
2 |
1B003793 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/5/img/63855.jpg)
3 |
008455 - VIS More informationQuantity required : 1 |
||||||
4 |
1A001793 - TOLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/2/2/7/img/159227.jpg)
5 |
1A001073 - VIS More informationQuantity required : 2 |
||||||
|
6 |
B014585 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
7 |
880805 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/6/8/img/149168.jpg)
8 |
SPARK PLUG (NGK MR8BI-8) "PIAGGIO GENUINE PART" 50 ZIP 4 STROKE 2018>, LIBERTY 4 STROKE 2017>, VESPA PRIMAVERA 4 STROKE 2018>, VESPA SPRINT 2018>/APRILIA 900 SHIVER, DORSODURO/MOTO-GUZZI V85 -1A010638 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
9 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267- More informationQuantity required : 1 |
||||||
|
10 |
874558 - ECROU More informationQuantity required : 1 |
||||||
|
11 |
643156 - CABLE More informationQuantity required : 1 |
||||||
|
12 |
B014066 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
13 |
B014063 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
14 |
1B003784 - PATTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/3/7/img/178637.jpg)
15 |
1A019532 - H T COIL COMPLETE WITH CAP More informationQuantity required : 1 |
||||||
|
16 |
1A016605 - CLAMP More informationQuantity required : 1 |
||||||
|
17 |
642537 - CACHE More informationQuantity required : 1 |
||||||
|
18 |
1A019673 - SPARK PLUG CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/6/8/3/img/140683.jpg)
19 |
CM271702 - BOBINE A.T. More informationQuantity required : 1 |
