Vehicle Exploded View - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

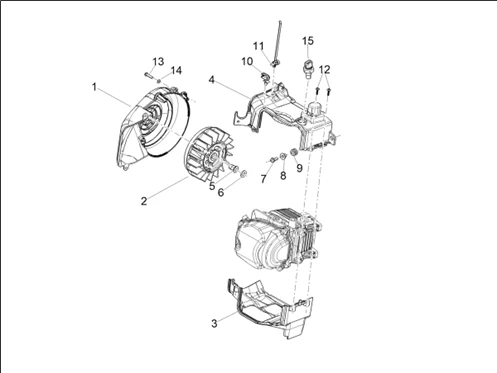

Instalation de refoidissement : 10.02 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_10.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/9/7/img/178697.jpg)
1 |
1A017911 - FAN COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/9/8/img/178698.jpg)
2 |
1A017959 - FAN WITH INSERT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/9/9/img/178699.jpg)
3 |
1A017931 - EXHAUST SIDE SHROUD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/7/0/0/img/178700.jpg)
4 |
1A019653 - INTAKE SIDE CONVEYOR More informationQuantity required : 1 |
||||||
5 |
844719 - ECROU More informationQuantity required : 1 |
||||||
|
6 |
B017080 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
7 |
1F000110 - VIS More informationQuantity required : 1 |
||||||
|
8 |
B014214 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/7/2/2/img/127722.jpg)
9 |
B014213 - PASSE CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
10 |
298729 - COLLIER More informationQuantity required : 1 |
||||||
|
11 |
643114 - COLLIER More informationQuantity required : 1 |
||||||
|
12 |
B018421 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/7/0/1/img/178701.jpg)
13 |
1A014986 - TORX HEAD SCREW M5X21 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
14 |
006975 - RONDELLE S00697500 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/1/2/img/81812.jpg)
15 |
TEMPERATURE SENSOR "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, VESPA LX, 50 PRIMAVERA, SPRINT -58273R More informationQuantity required : 1 |
