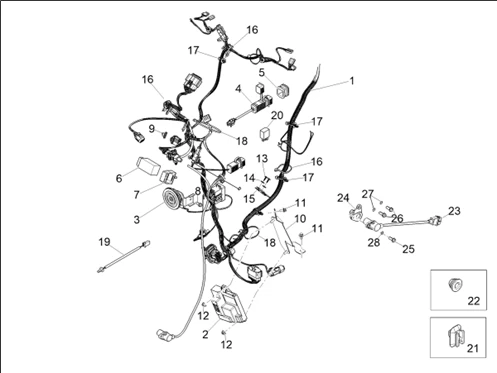

Dispositifs électriques : 11.01 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_11.01.png)
1 |
1D003341 - WIRE HARNESS OF FRAME More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/7/0/3/img/178703.jpg)
2 |
CM314208 - ELECTRONIC DEVICE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/5/4/img/164254.jpg)
3 |
CM087614 - AVERTISSEUR SONORE More informationQuantity required : 1 |
|||||||||
|
4 |
1D002753 - PRISE USB More informationQuantity required : 1 |
|||||||||
|
5 |
1B001591 - PASSE CABLES More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/7/0/5/img/178705.jpg)
6 |
1D003355 - BLINKER DEVICE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/6/img/66246.jpg)
7 |
291017 - SUPPORT More informationQuantity required : 1 |
|||||||||
|
8 |
434541 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/5/5/img/85755.jpg)
9 |
639560 - RESSORT More informationQuantity required : 1 |
|||||||||
|
10 |
1B007819 - ECU BRACKET WITH IP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
11 |
B016426 - VIS TEF M6X14 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
12 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
13 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
14 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 2 |
|||||||||
|
15 |
CM022808 - BRIDE DE BOITE A FUSIBLES More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
16 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 15 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
17 |
1D001143 - COLLIER More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
18 |
257134 - COLLIER More informationQuantity required : 2 |
|||||||||
|
19 |
1D003720R - ROOM TEMPERATURE SENSOR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/6/img/139406.jpg)
20 |
RELAY+RESISTANCE 12V 30A "PIAGGIO GENUINE PART" 125-350-500 MP3, X10, 125-250-300 VESPA GTS, PORTER/APRILIA 1000 RSV-2, TUONO V2, FALCO, CAPONORD -1D001636 More informationQuantity required : 1 |
|||||||||
|
21 |
B005629 - RESSORT More informationQuantity required : 1 |
|||||||||
|
22 |
1B005386 - PASSE-CABLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/2/img/152892.jpg)
23 |
PHONIC WHEEL / SPEEDOMETER SENSOR "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -1D000074 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/7/0/8/img/178708.jpg)
24 |
1C005268 - VELOCITY SENSOR SUPPORT PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/1/img/178661.JPG)
25 |
1C004839 - SOCKET HEAD SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/3/img/68493.jpg)
26 |
709099 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
27 |
006966 - RONDELLE S00696600 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
28 |
006975 - RONDELLE S00697500 More informationQuantity required : 1 |
|||||||||
