Vehicle Exploded View - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

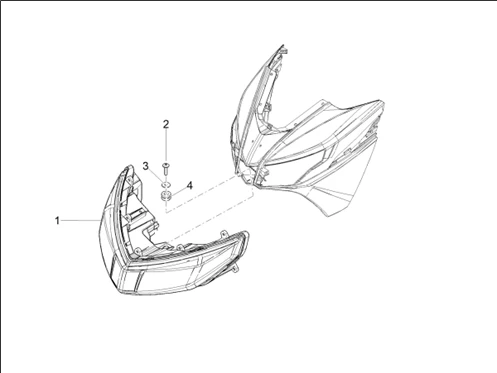

Feux - instruments : 08.01 ECLAIRAGES AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_08.01.png)
Search
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/4/8/8/img/177488.jpg)
1 |
1D003348 - COMPLETE HEADLAMP More informationQuantity required : 1 |
||||||
2 |
|
||||||
|
3 |
227838 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/4/img/67134.jpg)
4 |
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -576565 More informationQuantity required : 1 |
All the exploded views of this vehicle
