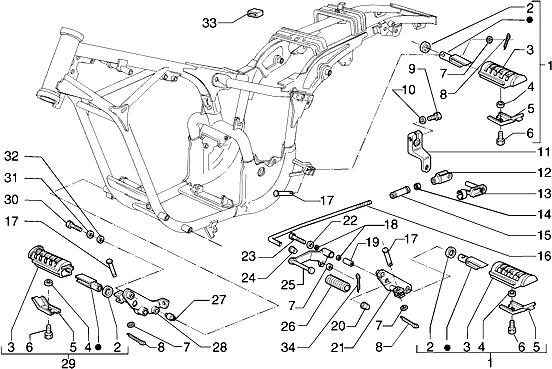

Vehicle Exploded View - GILERA COGUAR 125 GILERA

Châssis : T19 CHASSIS
Chassis
Search
967101 - REPOSE PIED

1
P2R reference P2R reference 94009
Maker reference Maker reference 967101

967101 - REPOSE PIED

More information

Quantity required : 2

495325 - VIS

1
P2R reference P2R reference 79268
Maker reference Maker reference 495325

495325 - VIS

More information

Quantity required : 2

CHASSIS COGUAR

1
P2R reference P2R reference
Maker reference Maker reference 967149

CHASSIS COGUAR

RONDELLE

2
P2R reference P2R reference
Maker reference Maker reference 967357

RONDELLE

PROTECTION

2
P2R reference P2R reference
Maker reference Maker reference 495581

PROTECTION

348744 - ROULEMENT

2
P2R reference P2R reference 78375
Maker reference Maker reference 348744

348744 - ROULEMENT

More information

Quantity required : 1

TAPIS REPOSE PIED

3
P2R reference P2R reference
Maker reference Maker reference 965489

TAPIS REPOSE PIED

VIS

3
P2R reference P2R reference
Maker reference Maker reference 495606

VIS

953659 - ROULEMENT

3
P2R reference P2R reference 93806
Maker reference Maker reference 953659

953659 - ROULEMENT

More information

Quantity required : 1

965502 - ENTRETOISE

4
P2R reference P2R reference 93998
Maker reference Maker reference 965502

965502 - ENTRETOISE

More information

Quantity required : 4

REGULATEUR M17

4
P2R reference P2R reference
Maker reference Maker reference 495568

REGULATEUR M17

CONTACTEUR BEQUILLE

4
P2R reference P2R reference
Maker reference Maker reference 495575

CONTACTEUR BEQUILLE

SUPPORT

4
P2R reference P2R reference
Maker reference Maker reference 967346

SUPPORT

PLAQUETTE

5
P2R reference P2R reference
Maker reference Maker reference 965503

PLAQUETTE

PIVOT

5
P2R reference P2R reference
Maker reference Maker reference 495604

PIVOT

SUPPORT CARÉNAGE

5
P2R reference P2R reference
Maker reference Maker reference 967410

SUPPORT CARÉNAGE

031084 - BOULON

6
P2R reference P2R reference 65636
Maker reference Maker reference 0310845

031084 - BOULON

More information

Quantity required : 4

BEQUILLE LAT

6
P2R reference P2R reference
Maker reference Maker reference 967340

BEQUILLE LAT

VIS

6
P2R reference P2R reference
Maker reference Maker reference 967353

VIS

006177 - RONDELLE S00617700

7
P2R reference P2R reference 63806
Maker reference Maker reference 0061775

006177 - RONDELLE S00617700

More information

Quantity required : 4

RESSORT

7
P2R reference P2R reference
Maker reference Maker reference 967326

RESSORT

319195 - VIS

7
P2R reference P2R reference 66336
Maker reference Maker reference 319195

319195 - VIS

More information

Quantity required : 2

003208 - GOUPILLE

8
P2R reference P2R reference 63782
Maker reference Maker reference 0032085

003208 - GOUPILLE

More information

Quantity required : 4

RESSORT

8
P2R reference P2R reference
Maker reference Maker reference 967325

RESSORT

324919 - SERRURE

8
P2R reference P2R reference 78348
Maker reference Maker reference 324919

324919 - SERRURE

More information

Quantity required : 1

031091 - VIS

9
P2R reference P2R reference 65642
Maker reference Maker reference 0310915

031091 - VIS

More information

Quantity required : 1

ECROU

9
P2R reference P2R reference
Maker reference Maker reference 495608

ECROU

SUPPORT

9
P2R reference P2R reference
Maker reference Maker reference 967345

SUPPORT

003056 - RONDELLE

10
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

003056 - RONDELLE

More information

Quantity required : 1

SUPPORT

10
P2R reference P2R reference
Maker reference Maker reference 967409

SUPPORT

LEVIER CHAN VITE

11
P2R reference P2R reference
Maker reference Maker reference 967195

LEVIER CHAN VITE

WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

11
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 4

329811 - FOURCHETTE

12
P2R reference P2R reference 78363
Maker reference Maker reference 329811

329811 - FOURCHETTE

More information

Quantity required : 1

003058 - RONDELLE S00305800

12
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

003058 - RONDELLE S00305800

More information

Quantity required : 4

PIVOT

13
P2R reference P2R reference
Maker reference Maker reference 324375

PIVOT

031119 - BOULON

13
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

031119 - BOULON

More information

Quantity required : 4

020106 - ECROU S02010600

14
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

020106 - ECROU S02010600

More information

Quantity required : 1

967363 - ECROU

14
P2R reference P2R reference 70925
Maker reference Maker reference 967363

967363 - ECROU

More information

Quantity required : 4

327145 - MANCHON EX 126939

15
P2R reference P2R reference 78351
Maker reference Maker reference 327145

327145 - MANCHON EX 126939

More information

Quantity required : 1

KIT SERRURES

15
P2R reference P2R reference
Maker reference Maker reference 967100

KIT SERRURES

967194 - TIRANT

16
P2R reference P2R reference 94017
Maker reference Maker reference 967194

967194 - TIRANT

More information

Quantity required : 1

VIS

16
P2R reference P2R reference
Maker reference Maker reference 967354

VIS

965576 - PIVOT

17
P2R reference P2R reference 93999
Maker reference Maker reference 965576

965576 - PIVOT

More information

Quantity required : 4

PLAQUETTE

17
P2R reference P2R reference
Maker reference Maker reference 967020

PLAQUETTE

006716 - JOINT S00671600

18
P2R reference P2R reference 63833
Maker reference Maker reference 0067165

006716 - JOINT S00671600

More information

Quantity required : 2

ENTRETOISE

19
P2R reference P2R reference
Maker reference Maker reference 463112

ENTRETOISE

ECROU

20
P2R reference P2R reference
Maker reference Maker reference 463113

ECROU

967076 - PLAQUE

21
P2R reference P2R reference 94003
Maker reference Maker reference 967076

967076 - PLAQUE

More information

Quantity required : 1

006032 - RONDELLE S00603200

22
P2R reference P2R reference 73670
Maker reference Maker reference 0060325

006032 - RONDELLE S00603200

More information

Quantity required : 1

030074 - BOULON S03007400

23
P2R reference P2R reference 65613
Maker reference Maker reference 0300745

030074 - BOULON S03007400

More information

Quantity required : 1

JOINT DE PEDALIER VT

24
P2R reference P2R reference
Maker reference Maker reference 463504

JOINT DE PEDALIER VT

Not available

25
P2R reference P2R reference
Maker reference Maker reference 463115

Not available

306926 - CAOUTCHOUC

26
P2R reference P2R reference 78303
Maker reference Maker reference 306926

306926 - CAOUTCHOUC

More information

Quantity required : 1

SILENBLOK

27
P2R reference P2R reference
Maker reference Maker reference 967419

SILENBLOK

967060 - PLAQUETTE

28
P2R reference P2R reference 94001
Maker reference Maker reference 967060

967060 - PLAQUETTE

More information

Quantity required : 1

967103 - REPOSE PIED

29
P2R reference P2R reference 94010
Maker reference Maker reference 967103

967103 - REPOSE PIED

More information

Quantity required : 2

VIS

30
P2R reference P2R reference
Maker reference Maker reference 463046

VIS

016626 - RONDELLE

31
P2R reference P2R reference 65423
Maker reference Maker reference 0166265

016626 - RONDELLE

More information

Quantity required : 4

RONDELLE

32
P2R reference P2R reference
Maker reference Maker reference 463593

RONDELLE

CACHE

33
P2R reference P2R reference
Maker reference Maker reference 463667

CACHE

003208 - GOUPILLE

34
P2R reference P2R reference 63782
Maker reference Maker reference 0032085

003208 - GOUPILLE

More information

Quantity required : 1
