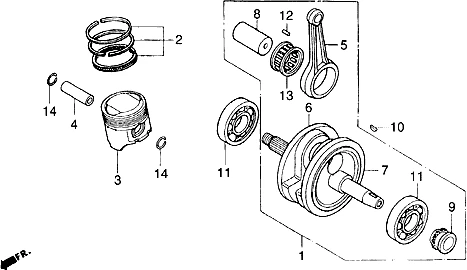

Moteur : T13 VILEBREQUIN-PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/168/Coguar_T13.PNG)
1 |
495432 - BOUCHON More informationQuantity required : 1 |
||||||
|
2 |
495434 - SEGMENTS KIT More informationQuantity required : 1 |
||||||
|
2 |
KIT SEGMENTS |
||||||
|
3 |
495436 - PISTON NU More informationQuantity required : 1 |
||||||
|
4 |
495437 - AXE PISTON More informationQuantity required : 1 |
||||||
|
5 |
BIELLE |
||||||
|
6 |
495436 - PISTON NU More informationQuantity required : 1 |
||||||
|
7 |
ARBRE GAUCHE |
||||||
|
8 |
CARTER |
||||||
|
9 |
BARBOTIN |
||||||
|
10 |
CLAVETTE |
||||||
|
11 |
495630 - ROULEMENT More informationQuantity required : 2 |
||||||
|
12 |
ROULEAU |
||||||
|
12 |
ROULEAU |
||||||
|
12 |
ROULEAU |
||||||
|
13 |
CAGE AIGUILLE |
||||||
|
14 |
495685 - AGRAFE More informationQuantity required : 2 |
