Vehicle Exploded View - GILERA COGUAR 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

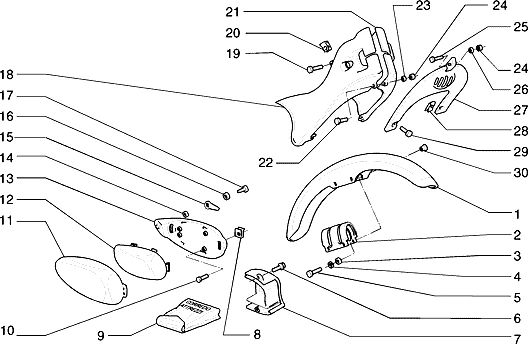

Châssis : T22 CARENAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/168/Coguar_T22.PNG)
1 |
GARDE BOUE AR BRUT |
||||||
|
1 |
G BOUE AR VERT/CREME |
||||||
|
1 |
GARDE BOUE AR NOIR |
||||||
|
1 |
GARDE BOUE AR ORA976 |
||||||
|
1 |
Garde boue AV. |
||||||
|
1 |
9674945060 - GARDE -BOUE More informationQuantity required : 1 |
||||||
|
1 |
Garde -boue |
||||||
|
1 |
Garde -boue |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/0/2/8/img/94028.jpg)
2 |
967351 - SILENBLOC More informationQuantity required : 4 |
||||||
|
2 |
PLAQUE INF FOURCHE |
||||||
|
3 |
SELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
3 |
003056 - RONDELLE More informationQuantity required : 4 |
||||||
|
4 |
SILENBLOC |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
4 |
016406 - RONDELLE S01640600 More informationQuantity required : 4 |
||||||
|
5 |
ENTRETOISE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
5 |
031092 - VIS More informationQuantity required : 4 |
||||||
|
6 |
495334 - VIS More informationQuantity required : 2 |
||||||
|
7 |
POIGNEE AR G |
||||||
|
7 |
COUVERCLE |
||||||
|
8 |
016667 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
9 |
003054 - RONDELLE S00305400 More informationQuantity required : 1 |
||||||
|
9 |
TROUSSE OUTILS |
||||||
|
10 |
CARTER G BRUT |
||||||
|
10 |
CARTER G VERT |
||||||
|
10 |
CARTER G NOIR |
||||||
|
10 |
CARENAGE G ORANGE976 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 2 |
||||||
|
11 |
CARTER DT BRUT |
||||||
|
11 |
CARTER DT VERT |
||||||
|
11 |
CARTER DT NOIR |
||||||
|
11 |
CARENAGE D ORANGE976 |
||||||
|
11 |
967253 - COUVERCLE INT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
12 |
SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888- More informationQuantity required : 2 |
||||||
|
12 |
967393 - COUVERCLE CHROMEE More informationQuantity required : 2 |
||||||
|
13 |
PLAQUETTE |
||||||
|
13 |
967484 - COUVERCLE More informationQuantity required : 2 |
||||||
|
13 |
967253 - COUVERCLE INT More informationQuantity required : 2 |
||||||
|
14 |
PROTECTION AR |
||||||
|
14 |
JOINT |
||||||
|
15 |
016667 - RONDELLE More informationQuantity required : 2 |
||||||
|
15 |
VERROU |
||||||
|
16 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
16 |
020106 - ECROU S02010600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/9/img/65449.jpg)
17 |
018644 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/8/img/65818.jpg)
17 |
195482 - ECROU More informationQuantity required : 2 |
||||||
|
18 |
JOINT |
||||||
|
18 |
PROTECTION AVT DT BR |
||||||
|
18 |
9670835060 - PROT AVT DT VERT More informationQuantity required : 1 |
||||||
|
18 |
9670835090 - PROT AVT DT NOIR More informationQuantity required : 1 |
||||||
|
18 |
PROTECTION D |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
19 |
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606- More informationQuantity required : 1 |
||||||
|
19 |
257404 - VIS More informationQuantity required : 4 |
||||||
|
20 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
20 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
21 |
181351 - PLAQUETTE More informationQuantity required : 2 |
||||||
|
21 |
PROT AVT G BRUT |
||||||
|
21 |
9670845060 - PROT AVT G VERT More informationQuantity required : 1 |
||||||
|
21 |
PROT AVT G NOIR |
||||||
|
21 |
Pneu s. chambre |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
22 |
020104 - ECROU S02010400 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
22 |
1A003109 - VIS M5X16 More informationQuantity required : 2 |
||||||
|
23 |
003055 - RONDELLE More informationQuantity required : 1 |
||||||
|
23 |
003054 - RONDELLE S00305400 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
24 |
020105 - ECROU S02010500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
24 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/5/img/65385.jpg)
25 |
015597 - VIS S01559700 More informationQuantity required : 1 |
||||||
|
25 |
967090 - BAVETTE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
26 |
006965 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
26 |
WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404 More informationQuantity required : 3 |
||||||
|
27 |
MASQUE AVT BRUT |
||||||
|
27 |
MASQUE AVT VERT |
||||||
|
27 |
9670855090 - MASQUE AVT NOIR More informationQuantity required : 1 |
||||||
|
27 |
MASQUE ORANGE 976 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/2/img/67322.jpg)
27 |
LICENSE PLATE HOLDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -584884- More informationQuantity required : 1 |
||||||
|
28 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
28 |
015996 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
29 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 2 |
||||||
|
29 |
015996 - VIS More informationQuantity required : 1 |
||||||
|
30 |
MOYEU |
||||||
|
30 |
SUPPORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/6/6/img/85566.jpg)
31 |
638745 - CATADIOPTRE AR More informationQuantity required : 1 |
||||||
|
32 |
|
||||||
|
33 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
|
34 |
463529 - BOUCHON POUR POIGNEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/1/img/67371.jpg)
35 |
SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/8/img/68488.jpg)
36 |
709012 - RONDELLE More informationQuantity required : 1 |
||||||
|
37 |
POIGNEE DT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
38 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152- More informationQuantity required : 2 |
||||||
|
39 |
SUPPORT PLAQUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/2/img/65712.jpg)
40 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" 125 VESPA PX, APE -121668 More informationQuantity required : 2 |
