Vehicle Exploded View - GILERA COGUAR 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

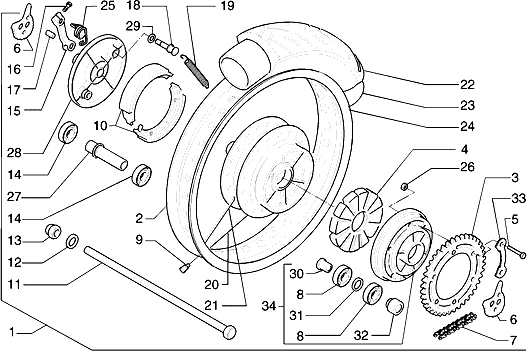

Suspensions-roues : T31 ROUE AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/168/Coguar_T31.PNG)
1 |
967210 - MOYEU AR More informationQuantity required : 1 |
||||||
|
2 |
967288 - JANTE AR More informationQuantity required : 1 |
||||||
|
3 |
967212 - COURONNE AR More informationQuantity required : 1 |
||||||
|
4 |
BLOC ELASTIQUE |
||||||
|
5 |
VIS |
||||||
|
6 |
EXCENTRIQUE |
||||||
|
7 |
96704R - CHA?NE More informationQuantity required : 1 |
||||||
|
8 |
ROULEMENT |
||||||
|
9 |
967481 - ECROU More informationQuantity required : 36 |
||||||
|
10 |
967211 - JEU MACHOIRES (2) ARR COGUAR More informationQuantity required : 1 |
||||||
|
11 |
564335 - AXE DE ROUE More informationQuantity required : 1 |
||||||
|
12 |
RONDELLE |
||||||
|
13 |
967408 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/4/8/img/80048.jpg)
14 |
564342 - ROULEMENT More informationQuantity required : 2 |
||||||
|
15 |
564316 - LEVIER More informationQuantity required : 1 |
||||||
|
16 |
VIS |
||||||
|
17 |
PIVOT |
||||||
|
18 |
AXE DE LEVIER |
||||||
|
19 |
RESSORT |
||||||
|
20 |
RAYON |
||||||
|
21 |
RAYON |
||||||
|
22 |
|
||||||
|
22 |
PNEU AR 130/70-17 PIRELLI |
||||||
|
23 |
CHAMBRE A AIR AR |
||||||
|
24 |
FOND DE JANTE |
||||||
|
25 |
RESSORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/2/img/6546_2.jpg)
26 |
NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" APE 50/ VESPA PX 125 -020107 More informationQuantity required : 6 |
||||||
|
27 |
ENTRETOISE |
||||||
|
28 |
PLATEAUX DES FREINS |
||||||
|
29 |
RONDELLE |
||||||
|
30 |
ENTRETOISE |
||||||
|
31 |
CIRCLIPS |
||||||
|
32 |
ENTRETOISE |
||||||
|
33 |
PLAQUETTE |
||||||
|
34 |
PORTE COURONNE |
