Vehicle Exploded View - GILERA COGUAR 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

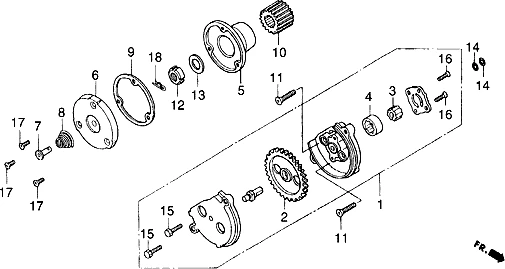

Moteur : T7 ENSEMBLE POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/168/Coguar_T7.PNG)
1 |
POMPE A HUILE |
||||||
|
2 |
ENGRENAGE |
||||||
|
3 |
ROTOR |
||||||
|
4 |
ROTOR |
||||||
|
5 |
495469 - ROTOR FILTRE A HUILE More informationQuantity required : 1 |
||||||
|
6 |
COUVERCLE |
||||||
|
7 |
VALVE D HUILE |
||||||
|
8 |
RESSORT |
||||||
|
9 |
495474 - JOINT More informationQuantity required : 1 |
||||||
|
10 |
495517 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
11 |
ECROU |
||||||
|
12 |
ECROU |
||||||
|
13 |
RONDELLE |
||||||
|
14 |
495650 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
15 |
VIS |
||||||
|
16 |
VIS |
||||||
|
17 |
495669 - VIS More informationQuantity required : 3 |
||||||
|
18 |
495677 - AGRAFE More informationQuantity required : 1 |
