Vehicle Exploded View - GILERA COGUAR 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

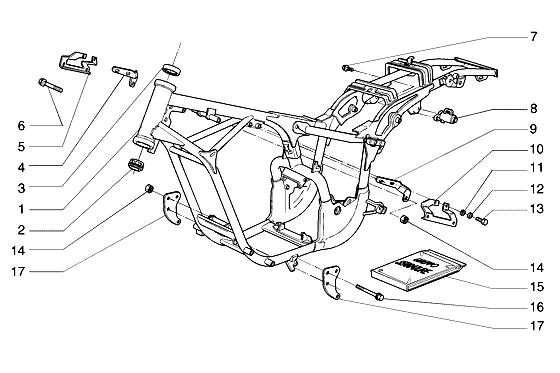

Châssis : T21 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/168/Coguar-126.png)
1 |
CHASSIS COGUAR |
||||||
|
2 |
348744 - ROULEMENT More informationQuantity required : 1 |
||||||
|
3 |
953659 - ROULEMENT More informationQuantity required : 1 |
||||||
|
4 |
SUPPORT |
||||||
|
5 |
SUPPORT CARÉNAGE |
||||||
|
6 |
VIS |
||||||
|
7 |
319195 - VIS More informationQuantity required : 2 |
||||||
|
8 |
324919 - SERRURE More informationQuantity required : 1 |
||||||
|
9 |
SUPPORT |
||||||
|
10 |
SUPPORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
11 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
12 |
003058 - RONDELLE S00305800 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
13 |
031119 - BOULON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/5/img/70925.jpg)
14 |
967363 - ECROU More informationQuantity required : 4 |
||||||
|
15 |
KIT SERRURES |
||||||
|
16 |
VIS |
||||||
|
17 |
PLAQUETTE |
