Vehicle Exploded View - GILERA COGUAR 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

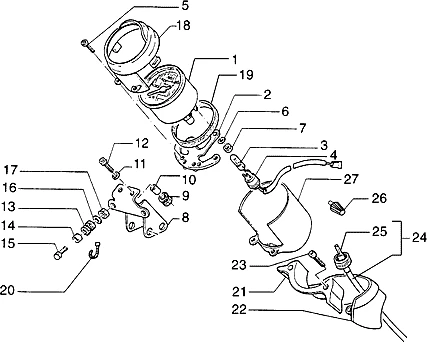

Guidon : T32 COMPTEUR KILOMETRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/168/Coguar_T32.PNG)
1 |
581161 - COMPTEUR More informationQuantity required : 1 |
||||||
|
1 |
Comptemilles |
||||||
|
2 |
SUPPORT COMPTEUR |
||||||
|
3 |
|
||||||
|
4 |
PORTE LAMPE |
||||||
|
5 |
008437 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
6 |
016405 - RONDELLE S01640500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
7 |
020105 - ECROU S02010500 More informationQuantity required : 2 |
||||||
|
8 |
463163 - SUPPORT More informationQuantity required : 1 |
||||||
|
9 |
SILENTBLOC |
||||||
|
10 |
ENTRETOISE |
||||||
|
11 |
006126 - RONDELLE More informationQuantity required : 2 |
||||||
|
12 |
031059 - BOULON S03105900 More informationQuantity required : 2 |
||||||
|
13 |
SILENTBLOC |
||||||
|
14 |
ENTRETOISE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/0/6/img/65606.jpg)
15 |
030039 - VIS More informationQuantity required : 2 |
||||||
|
16 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/1/img/65341.jpg)
17 |
012112 - ECROU S01211200 More informationQuantity required : 2 |
||||||
|
18 |
DOUILLE |
||||||
|
19 |
JOINT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
20 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 2 |
||||||
|
21 |
292745 - PROTECTION COMPTEUR More informationQuantity required : 1 |
||||||
|
22 |
PROTECTION ARR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/0/8/img/77108.jpg)
23 |
265636 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/0/4/3/img/94043.jpg)
24 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" GILERA 125 COGUAR -967497- More informationQuantity required : 1 |
||||||
|
25 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" GILERA 125 COGUAR -967497- More informationQuantity required : 1 |
||||||
|
26 |
292805 - BOUTON More informationQuantity required : 1 |
||||||
|
27 |
BOITE COMPTEUR |
