Vehicle Exploded View - GILERA COGUAR 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

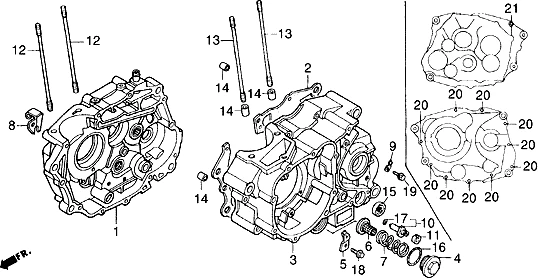

Moteur : T12 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/168/Coguar_T12.PNG)
1 |
CARTER |
||||||
|
2 |
495414 - JOINT More informationQuantity required : 1 |
||||||
|
3 |
CARTER |
||||||
|
4 |
495432 - BOUCHON More informationQuantity required : 1 |
||||||
|
5 |
PLAQUETTE |
||||||
|
6 |
495069 - FILTRE A HUILE More informationQuantity required : 1 |
||||||
|
7 |
RESSORT |
||||||
|
8 |
PLAQUETTE |
||||||
|
9 |
AGRAFE |
||||||
|
10 |
495576 - CONTACT POINT MORT More informationQuantity required : 1 |
||||||
|
11 |
495578 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
12 |
GOUJON |
||||||
|
13 |
495589 - GOUJON More informationQuantity required : 2 |
||||||
|
14 |
495240 - JOINT EX 495628 More informationQuantity required : 4 |
||||||
|
15 |
495643 - PARE HUILE More informationQuantity required : 1 |
||||||
|
16 |
495647 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
17 |
JOINT TORIQUE |
||||||
|
18 |
VIS |
||||||
|
19 |
VIS |
||||||
|
20 |
495697 - VIS More informationQuantity required : 10 |
||||||
|
21 |
VIS |
