Vehicle Exploded View - GILERA COGUAR 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

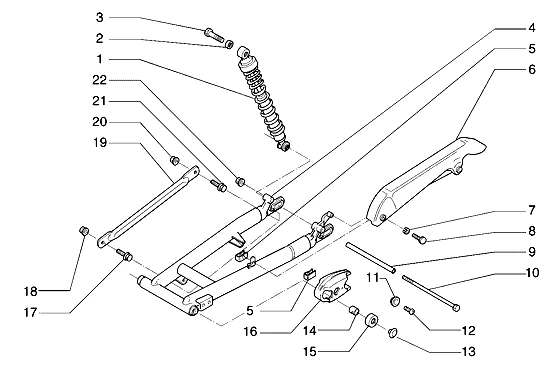

Châssis : T25 FOURCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/168/Coguar-144.png)
1 |
967119 - AMORTISSEUR AR More informationQuantity required : 2 |
||||||
|
2 |
RONDELLE |
||||||
|
3 |
VIS |
||||||
|
4 |
BRAS AR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
|
6 |
CARTER CHAISE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
7 |
006976 - RONDELLE S00697600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/0/img/65380.jpg)
8 |
015558 - VIS More informationQuantity required : 2 |
||||||
|
9 |
967140 - ENTRETOISE More informationQuantity required : 3 |
||||||
|
10 |
AXE FOURCHE |
||||||
|
11 |
RONDELLE |
||||||
|
12 |
018509 - VIS More informationQuantity required : 1 |
||||||
|
13 |
463151 - BOUCHON DE PLAQUE More informationQuantity required : 2 |
||||||
|
14 |
967137 - DOUILLE More informationQuantity required : 2 |
||||||
|
15 |
967358 - RONDELLE More informationQuantity required : 2 |
||||||
|
16 |
DOIGT |
||||||
|
17 |
VIS |
||||||
|
18 |
ECROU |
||||||
|
19 |
TIGE |
||||||
|
20 |
967356 - ECROU More informationQuantity required : 1 |
||||||
|
21 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/7/img/66047.jpg)
22 |
NUT - "PIAGGIO GENUINE PART" -261319- More informationQuantity required : 1 |
