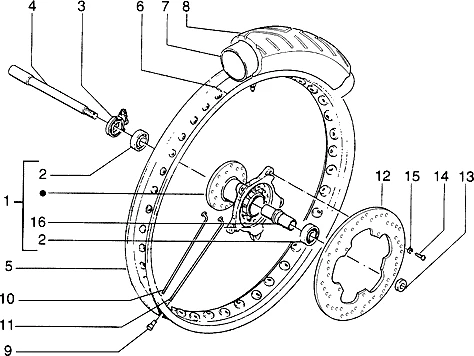

Vehicle Exploded View - GILERA COGUAR 125 GILERA

Suspensions-roues : T30 ROUE AV.
Roue AV.
Search
967289 - MOYEU

1
P2R reference P2R reference 94025
Maker reference Maker reference 967289

967289 - MOYEU

More information

Quantity required : 1

FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910

2
P2R reference P2R reference 68102
Maker reference Maker reference 649910

FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910

More information

Quantity required : 2

ENTRAINEMENT COMPT

3
P2R reference P2R reference
Maker reference Maker reference 463105

ENTRAINEMENT COMPT

463096 - AXE ROUE AVANT

4
P2R reference P2R reference 78723
Maker reference Maker reference 463096

463096 - AXE ROUE AVANT

More information

Quantity required : 1

967292 - JANTE AVT

5
P2R reference P2R reference 94026
Maker reference Maker reference 967292

967292 - JANTE AVT

More information

Quantity required : 1

FOND DE JANTE

6
P2R reference P2R reference
Maker reference Maker reference 967395

FOND DE JANTE

CHAMBRE A AIR

7
P2R reference P2R reference
Maker reference Maker reference 564302

CHAMBRE A AIR

PNEU 100/80-17 PIRELLI MT75

8
P2R reference P2R reference
Maker reference Maker reference 564295

PNEU 100/80-17 PIRELLI MT75

Pneu

8
P2R reference P2R reference
Maker reference Maker reference 564296

Pneu

ECROU DE RAYON

9
P2R reference P2R reference
Maker reference Maker reference 942574

ECROU DE RAYON

RAYON

10
P2R reference P2R reference
Maker reference Maker reference 967002

RAYON

RAYON

11
P2R reference P2R reference
Maker reference Maker reference 967003

RAYON

967206 - DISQUE FREIN AVT

12
P2R reference P2R reference 94020
Maker reference Maker reference 967206

967206 - DISQUE FREIN AVT

More information

Quantity required : 1

ENTRETOISE

13
P2R reference P2R reference
Maker reference Maker reference 463131

ENTRETOISE

BRAKE DISC SCREW (6x20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152-

14
P2R reference P2R reference 68436
Maker reference Maker reference 667152

BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152-

More information

Quantity required : 5

274706 - RONDELLE

15
P2R reference P2R reference 66140
Maker reference Maker reference 274706

274706 - RONDELLE

More information

Quantity required : 5

ENTRETOISE

16
P2R reference P2R reference
Maker reference Maker reference 942541

ENTRETOISE
