Vehicle Exploded View - GILERA COGUAR 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

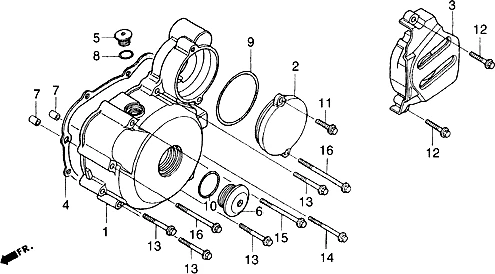

Moteur : T8 COUVERCLE DU CARTER MOTEUR GAUCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/168/Coguar_T8.PNG)
1 |
495416 - COUVERCLE More informationQuantity required : 1 |
||||||
|
2 |
COUVERCLE |
||||||
|
3 |
COUVERCLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/8/0/9/img/66809.jpg)
4 |
GASKET FOR CLUTCH COVER "PIAGGIO GENUINE PART" GILERA 125 COGUARD -495421 More informationQuantity required : 1 |
||||||
|
5 |
BOUCHON |
||||||
|
6 |
495599 - BOUCHON COUVERCLE VOLANT MAGNETIQUE M17 More informationQuantity required : 2 |
||||||
|
7 |
495240 - JOINT EX 495628 More informationQuantity required : 1 |
||||||
|
8 |
495648 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/8/8/8/img/66888.jpg)
9 |
495662 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
10 |
495662 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
11 |
VIS |
||||||
|
12 |
495334 - VIS More informationQuantity required : 2 |
||||||
|
13 |
495339 - VIS More informationQuantity required : 4 |
||||||
|
14 |
495697 - VIS More informationQuantity required : 1 |
||||||
|
15 |
VIS |
||||||
|
16 |
VIS |
