Vehicle Exploded View - GILERA COGUAR 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

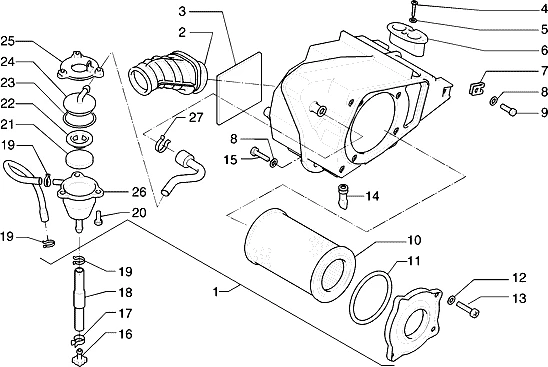

Moteur : T17 BOÎTIER DU FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/168/Coguar_T17.PNG)
1 |
BOITIER FILTRE |
||||||
|
2 |
MANCHON |
||||||
|
3 |
JOINT |
||||||
|
4 |
VIS |
||||||
|
5 |
030054 - VIS S03005400 More informationQuantity required : 1 |
||||||
|
6 |
PRISE AIR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
8 |
013880 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
9 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 2 |
||||||
|
10 |
FILTRE AIR COGUAR |
||||||
|
11 |
JOINT |
||||||
|
12 |
003055 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
13 |
1A003109 - VIS M5X16 More informationQuantity required : 4 |
||||||
|
14 |
PIPETTE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
15 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830- More informationQuantity required : 2 |
||||||
|
16 |
BOUCHON |
||||||
|
17 |
COLLIER |
||||||
|
18 |
TUYAU |
||||||
|
19 |
COLLIER |
||||||
|
20 |
VIS |
||||||
|
21 |
ELEMENT CODENSATION |
||||||
|
22 |
BOUCHON |
||||||
|
23 |
JOINT |
||||||
|
24 |
VIS |
||||||
|
25 |
COUVERCLE |
||||||
|
26 |
CORP SERRURE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/4/img/72894.jpg)
27 |
CM002908 - COLLIER More informationQuantity required : 1 |
