Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

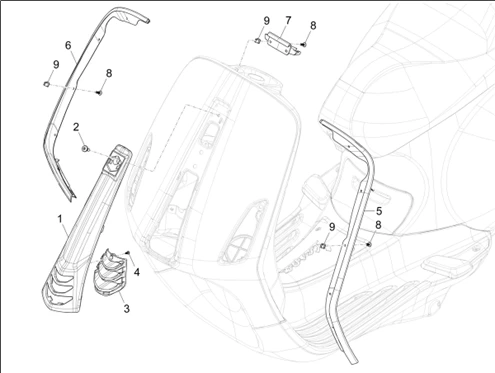

Châssis - parties plastiques - carrosseries : 02.03 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1316/_Primavera_Elettrica_TECH_RED_70_km-h_2024_(EMEA)_02.03.png)
1 |
CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -1C002702- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202 More informationQuantity required : 1 |
||||||
|
3 |
1B010293000K1 - HANDLEBAR COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
4 |
SCREW - -008432 More informationQuantity required : 1 |
||||||
|
5 |
1B010663000K1 - BORD DE TABLIER G More informationQuantity required : 1 |
||||||
|
6 |
1B010664000K1 - BORD DE TABLIER D More informationQuantity required : 1 |
||||||
|
7 |
1B010662000K1 - BORD DE TABLIER CENTRAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
8 |
SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603 More informationQuantity required : 13 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
9 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 14 |
