Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

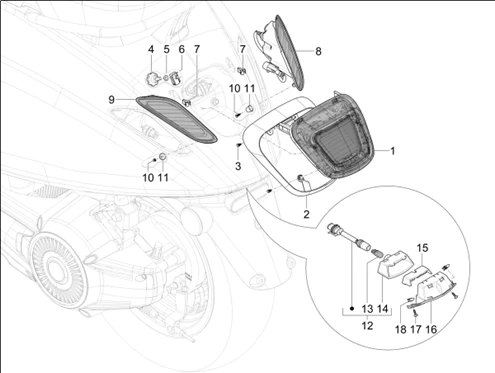

Circuit électrique : 06.03 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1316/_Primavera_Elettrica_TECH_RED_70_km-h_2024_(EMEA)_06.03.png)
1 |
1D004115 - FEU ARRIèRE COMPLET More informationQuantity required : 1 |
||||||
|
2 |
1D004802000K1 - TAIL LAMP RIM More informationQuantity required : 1 |
||||||
|
3 |
1D004812 - SELF THREADING SCREW TORX More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/3/1/img/75431.jpg)
4 |
1B000116 - BOUTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
5 |
006975 - RONDELLE S00697500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
6 |
248419 - PLAQUETTE PLASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
7 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859 More informationQuantity required : 2 |
||||||
|
8 |
1D004113 - REAR RIGHT TURN SIGNAL LAMP More informationQuantity required : 1 |
||||||
|
9 |
1D004114 - REAR LEFT TURN SIGNAL LAMP More informationQuantity required : 1 |
||||||
|
10 |
1B010290 - VIS A TETE HEXAGONALE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/1/7/2/img/75172.jpg)
11 |
CAP FOR MUDGUARD "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS VESPA -192598- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/1/3/5/img/76135.jpg)
12 |
1D000085 - FEU PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
13 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225- More informationQuantity required : 1 |
||||||
|
14 |
1D000314 - FEU AR More informationQuantity required : 1 |
||||||
|
15 |
1B001016 - CADRE PHARE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/2/9/0/img/91290.jpg)
16 |
673610000C - COUVERCLE FEU AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/3/8/img/195738.jpg)
17 |
296141 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/3/img/72923.jpg)
18 |
CM017405 - PLAQUETTE More informationQuantity required : 2 |
