Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

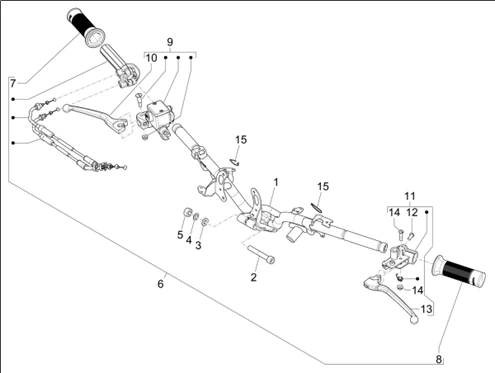

Guidon/direction : 03.01 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1316/_Primavera_Elettrica_TECH_RED_70_km-h_2024_(EMEA)_03.01.png)
1 |
1B010469R - GUIDON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/5/9/img/90459.jpg)
2 |
668874 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
3 |
012543 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/6/img/110336.jpg)
4 |
267917 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
5 |
015330 - ECROU More informationQuantity required : 1 |
||||||
|
6 |
CM087746000Z1 - MANCHON COMMANDE ACCELERATEUR COMPLET More informationQuantity required : 1 |
||||||
|
7 |
CM3275050000C - POIGNéE DROITE More informationQuantity required : 1 |
||||||
|
8 |
CM3275060000C - POIGNéE GAUCHE More informationQuantity required : 1 |
||||||
|
9 |
CM325801 - RIGHT MASTER CYLINDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/0/5/8/img/201058.jpg)
10 |
1C007042 - RIGHT BRAKE LEVER More informationQuantity required : 1 |
||||||
|
11 |
CM328606 - MANCHON AVEC LEVIER DE FREIN ARRIèRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/8/1/img/70481.jpg)
12 |
873433 - VIS FIX. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/5/img/67075.jpg)
13 |
LEFT BRAKE LEVER - "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, VESPA LX, PRIMAVERA, 50 NRG POWER (HENG-TONG) -564683 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
14 |
265249 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/6/4/6/img/89646.jpg)
15 |
657046 - RESSORT More informationQuantity required : 2 |
