Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

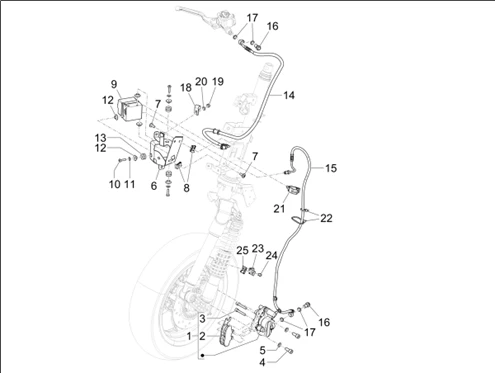

Instalation du freins - transmisisons : 05.01 TUYAUS DU FREINS - ETRIERS DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1316/_Primavera_Elettrica_TECH_RED_70_km-h_2024_(EMEA)_05.01.png)
1 |
CM294417 - BRAKE HYDRAULIC CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/9/img/68179.jpg)
2 |
FRONT BRAKE PADS - "PIAGGIO GENUINE PART" 125 BEVERLY 2010> , FLY 2013> , LIBERTY 2013> , 300 BEVERLY 2010> , 300 VESPA GTS 2012> , 250 VESPA GTS 2005> , 500 X10 2012> , 350 BEVERLY 2013> (PAIR) -651253- More informationQuantity required : 1 |
||||||
|
3 |
1C006198 - TIGE BUTéE PLAQ.FREIN More informationQuantity required : 2 |
||||||
|
4 |
1C006239 - SCREW TCEI M8X20 8.8 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
5 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047- More informationQuantity required : 2 |
||||||
|
6 |
1C007016 - MODELLO ZANG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
7 |
CM179301 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 3 |
||||||
|
9 |
1C007291 - ABS UNIT PREFILLED More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
10 |
SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
11 |
006965 - RONDELLE More informationQuantity required : 3 |
||||||
|
12 |
1C000870 - ENTRETOISE More informationQuantity required : 6 |
||||||
|
13 |
939278 - TAMPON More informationQuantity required : 3 |
||||||
|
14 |
1C006935 - HYDRAULIC HOSE RH PUMP-ABS CONTOL UNIT More informationQuantity required : 1 |
||||||
|
15 |
1C007292 - BRAKE HOSE ABS FRONT CALIPER More informationQuantity required : 1 |
||||||
|
16 |
2B011672R - SPECIAL SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
17 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927- More informationQuantity required : 4 |
||||||
|
18 |
675510 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
19 |
020106 - ECROU S02010600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
20 |
006976 - RONDELLE S00697600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
21 |
CM006903 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
22 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 2 |
||||||
|
23 |
1C000585 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/5/img/66135.jpg)
24 |
274369 - BOULON More informationQuantity required : 1 |
||||||
|
25 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
