Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

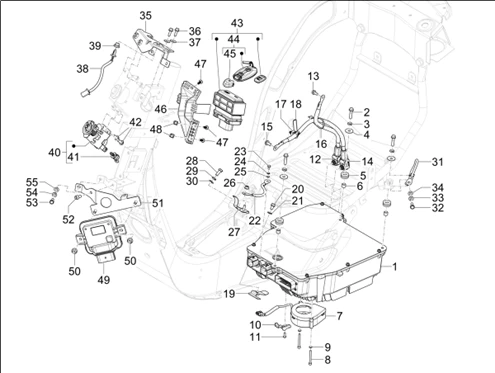

Circuit électrique : 06.06 BOÎTIERS ÉLECTRONIQUES - CAPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1316/_Primavera_Elettrica_TECH_RED_70_km-h_2024_(EMEA)_06.06.png)
1 |
Système de gestion du moteur |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
2 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
3 |
016406 - RONDELLE S01640600 More informationQuantity required : 3 |
||||||
|
4 |
013755 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/1/img/66031.jpg)
5 |
SILENBLOC "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCCOOTER -258904- More informationQuantity required : 3 |
||||||
|
6 |
270215 - ENTRETOISE More informationQuantity required : 3 |
||||||
|
7 |
1A0132845 - VENTILATEUR More informationQuantity required : 1 |
||||||
|
8 |
615796 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/6/img/63836.jpg)
9 |
006964 - RONDELLE ELAST. S00696400 More informationQuantity required : 2 |
||||||
|
10 |
1A013080 - RETENUE CABLE More informationQuantity required : 1 |
||||||
|
11 |
1A005257 - VIS More informationQuantity required : 1 |
||||||
|
12 |
CM293601 - CABLE BATTERIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
13 |
484123 - VIS More informationQuantity required : 1 |
||||||
|
14 |
CM293701 - CABLE BATTERIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
15 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
16 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
17 |
1D001143 - COLLIER More informationQuantity required : 1 |
||||||
|
18 |
583282 - JOINT PROTECT ARR FX More informationQuantity required : 1 |
||||||
|
19 |
1B006014 - PATTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
20 |
969296 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/6/img/66076.jpg)
21 |
269134 - RONDELLE More informationQuantity required : 1 |
||||||
|
22 |
CM297305 - CREUX DE MASSE More informationQuantity required : 1 |
||||||
|
23 |
031023 - VIS S03102300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
24 |
WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
25 |
003054 - RONDELLE S00305400 More informationQuantity required : 1 |
||||||
|
26 |
2419376 - ECROU BRIDé More informationQuantity required : 1 |
||||||
|
27 |
2419376 - ECROU BRIDé More informationQuantity required : 1 |
||||||
|
28 |
641204 - BOULON More informationQuantity required : 1 |
||||||
|
29 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
30 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
|
31 |
CM297304 - CREUX DE MASSE More informationQuantity required : 1 |
||||||
|
32 |
641204 - BOULON More informationQuantity required : 1 |
||||||
|
33 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
|
34 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
|
35 |
1B005388 - PATTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
36 |
830061 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/1/img/65421.jpg)
37 |
016603 - RONDELLE S01660300 More informationQuantity required : 2 |
||||||
|
38 |
1D003720R - ROOM TEMPERATURE SENSOR More informationQuantity required : 1 |
||||||
|
39 |
1B005386 - PASSE-CABLE More informationQuantity required : 1 |
||||||
|
40 |
1D004208 - CAPTEUR DE POSITION D'ACCELERATEUR More informationQuantity required : 1 |
||||||
|
41 |
1D001143 - COLLIER More informationQuantity required : 1 |
||||||
|
42 |
AP8152277 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/0/1/0/img/201010.jpg)
43 |
1D004004 - KIT OF COMPLETE KEYLESS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/0/1/1/img/201011.jpg)
44 |
1D004008 - KEY FOB More informationQuantity required : 1 |
||||||
|
45 |
1D004390 - COVER FOR REMOTE CONTROL More informationQuantity required : 1 |
||||||
|
46 |
1B010313 - KEYLESS CONTROL UNIT SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
47 |
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
48 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 2 |
||||||
|
49 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/0/img/70940.jpg)
50 |
969224 - ECROU More informationQuantity required : 2 |
||||||
|
51 |
Bracket |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/4/img/65714.jpg)
52 |
122675 - VIS More informationQuantity required : 1 |
||||||
|
53 |
641204 - BOULON More informationQuantity required : 1 |
||||||
|
54 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
|
55 |
003056 - RONDELLE More informationQuantity required : 1 |
