Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

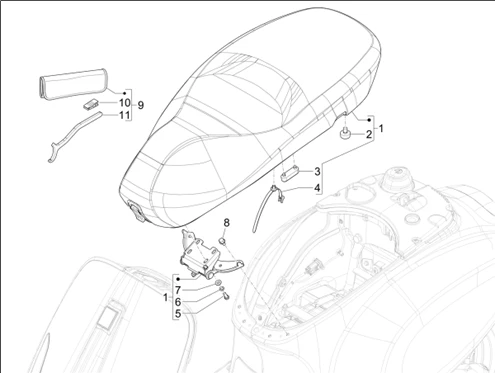

Châssis - parties plastiques - carrosseries : 02.11 SELLE - TROUSSE D'OUTILIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1316/_Primavera_Elettrica_TECH_RED_70_km-h_2024_(EMEA)_02.11.png)
1 |
1B010269 - COMPLETE SADDLE WITH HINGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
2 |
SADDLE PAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -577492 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
3 |
296456 - TAMPON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
4 |
298729 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
5 |
CM179302 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
6 |
012533 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
7 |
013880 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
8 |
B016426 - VIS TEF M6X14 More informationQuantity required : 4 |
||||||
|
9 |
1C000590 - TROUSSE OUTILS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/7/7/img/140377.jpg)
10 |
584654 - EXTRACTEUR DE FUSIBLES More informationQuantity required : 1 |
||||||
|
11 |
648069 - CLE AMORTISSEUR More informationQuantity required : 1 |
