Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

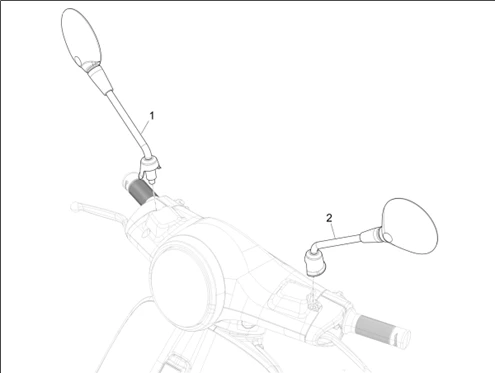

Châssis - parties plastiques - carrosseries : 02.13 RÉTROVISEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1316/_Primavera_Elettrica_TECH_RED_70_km-h_2024_(EMEA)_02.13.png)
Search
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/3/4/3/img/96343.jpg)
1 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA -CM261902- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/2/8/2/img/177282.jpg)
1 |
CM316802 - RIGHT REAR VIEW MIRROR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/3/4/2/img/96342.jpg)
2 |
MIRROR- LEFT "PIAGGIO GENUINE PART" 50-125 PRIMAVERA -CM261901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/2/8/3/img/177283.jpg)
2 |
CM316801 - LEFT REAR VIEW MIRROR More informationQuantity required : 1 |
