Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

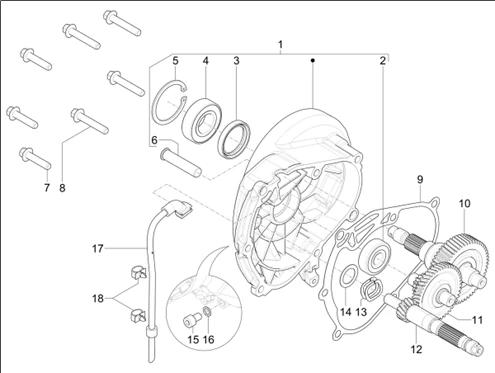

Moteur eléctrique : 01.04 ENSEMBLE RÉDUCTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1316/_Primavera_Elettrica_TECH_RED_70_km-h_2024_(EMEA)_01.04.png)
1 |
1A0092775 - COUVERCLE REDUCTEUR More informationQuantity required : 1 |
||||||
|
2 |
B014367 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/7/img/68807.jpg)
3 |
GASKET RING-REAR WHEEL SHAFT "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, VESPA LX, VESPA-S, X8 STREET/GILERA 125 RUNNER, DNA/APRILIA 125 MOJITO -82899R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/1/2/img/139412.jpg)
4 |
WHEEL BEARING "PIAGGIO GENUINE PART" GILERA GP 800 FRONT/APRILIA SRV 850 FRONT/PIAGGIO 125 FLY REAR, LIBERTY 125/ VESPA LX, LXV, S 125 (25X52X15) -4789845- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/6/img/63826.jpg)
5 |
006652 - CIRCLIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/0/img/66120.jpg)
6 |
272921 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/8/img/72718.jpg)
7 |
SCREW - M8X35 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -B016772- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/0/img/72730.jpg)
8 |
SCREW 8X45 FOR CHAIN GUIDE "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -B016805- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/8/img/69548.jpg)
9 |
GASKET FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" 125 MP3, FLY, LIBERTY, X8, X9, X-EVO/ GILERA 125 NEXUS, RUNNER/ APRILIA 125 ATLANTIC, SR MOTARD/ VESPA 125 GT, LX, S -847930- More informationQuantity required : 1 |
||||||
|
10 |
1A017878 - AXE DE ROUE ARRIERE AVEC PIECES INTER More informationQuantity required : 1 |
||||||
|
11 |
1A017872 - ARBRE TRNSMISSION More informationQuantity required : 1 |
||||||
|
12 |
1A017620 - VILEBREQUIN ELECTRIQUE More informationQuantity required : 1 |
||||||
|
13 |
1A013407 - RESSORT More informationQuantity required : 2 |
||||||
|
14 |
1A013411 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
15 |
269755 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
16 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703- More informationQuantity required : 1 |
||||||
|
17 |
CM162203 - TUBE More informationQuantity required : 1 |
||||||
|
18 |
191002 - RESSORT More informationQuantity required : 2 |
