Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

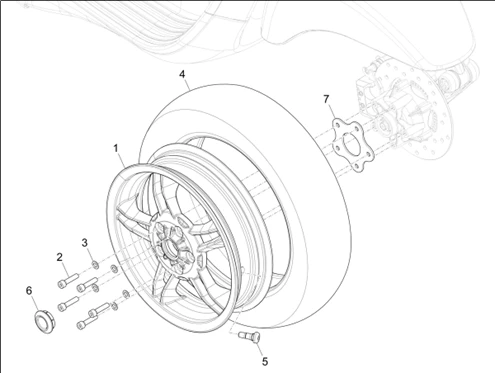

Suspensions - roues : 04.06 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1316/_Primavera_Elettrica_TECH_RED_70_km-h_2024_(EMEA)_04.06.png)
1 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/1/img/67371.jpg)
2 |
SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
3 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047- More informationQuantity required : 5 |
||||||
|
4 |
1C003736 - PNEU 110/70-12" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
5 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/1/5/img/76015.jpg)
6 |
COVER - FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER+MAXISCOOTER - CHROME -1C000523 More informationQuantity required : 1 |
||||||
|
7 |
1C004342 - CIRCLIPS More informationQuantity required : 1 |
