Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

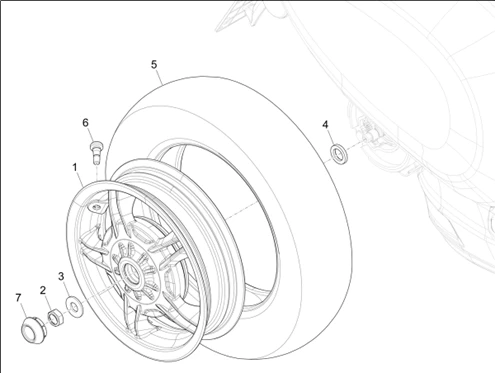

Suspensions - roues : 04.07 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1316/_Primavera_Elettrica_TECH_RED_70_km-h_2024_(EMEA)_04.07.png)
1 |
1C004342 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
2 |
1C004202 - SELF LOCKING NUT WITH STEEL INSERT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/2/img/66122.jpg)
3 |
WASHER (34,8X16X2,2) ROUE ARRIERE "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -273099 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/7/4/img/67474.jpg)
4 |
601205 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
5 |
1C003735 - PNEU 120/70-11" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
6 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
|
7 |
1C003605 - BOUCHON More informationQuantity required : 1 |
