Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

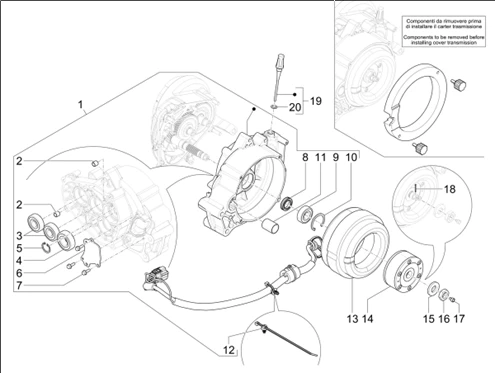

Moteur eléctrique : 01.02 COMPONENTI MOTORE ELETTRICO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1316/_Primavera_Elettrica_TECH_RED_70_km-h_2024_(EMEA)_01.02.png)
1 |
1A0092725 - CARTE TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
2 |
CENTERING PIN (11X10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -B015957 More informationQuantity required : 2 |
||||||
|
3 |
B014367 - ROULEMENT More informationQuantity required : 2 |
||||||
|
4 |
B014368 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/9/img/72699.jpg)
5 |
CIRCLIPS (25X26,9X1,2) "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -B015959 More informationQuantity required : 1 |
||||||
|
6 |
1A010645 - TOLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
7 |
830061 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/5/img/68775.jpg)
8 |
GASKET FOR DRIVING SHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -82878R - More informationQuantity required : 1 |
||||||
|
9 |
880682 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/9/img/68559.jpg)
10 |
825667 - SEGMENT More informationQuantity required : 1 |
||||||
|
11 |
1A010657 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
12 |
1D001143 - COLLIER More informationQuantity required : 1 |
||||||
|
13 |
1A010670 - STATEUR POUR ALTERNATEUR More informationQuantity required : 1 |
||||||
|
13 |
1A015956 - STATOR COMPLET More informationQuantity required : 1 |
||||||
|
14 |
1A010761 - ROTOR More informationQuantity required : 1 |
||||||
|
14 |
1A015957 - ROTOR DU MOTEUR ELECTRIQUE More informationQuantity required : 1 |
||||||
|
15 |
875970 - RESSORT More informationQuantity required : 1 |
||||||
|
16 |
021216 - ECROU S02121600 More informationQuantity required : 1 |
||||||
|
17 |
1A010748 - DETECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/2/img/63782.jpg)
18 |
003208 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
19 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER ET MAXISCOOTER -832130- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/3/img/68643.jpg)
20 |
827085 - JOINT More informationQuantity required : 1 |
