Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

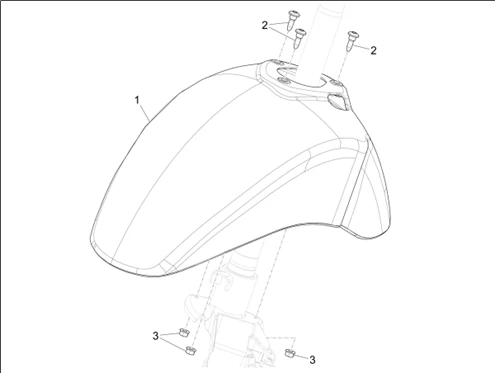

Châssis - parties plastiques - carrosseries : 02.07 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1316/_Primavera_Elettrica_TECH_RED_70_km-h_2024_(EMEA)_02.07.png)
Search
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/1/3/9/img/178139.jpg)
1 |
1B006646000R7 - GARDE-BOUE AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/1/4/0/img/178140.jpg)
1 |
1B006646 - GARDE-BOUE AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
3 |
012138 - ECROU S01213800 More informationQuantity required : 3 |
