Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

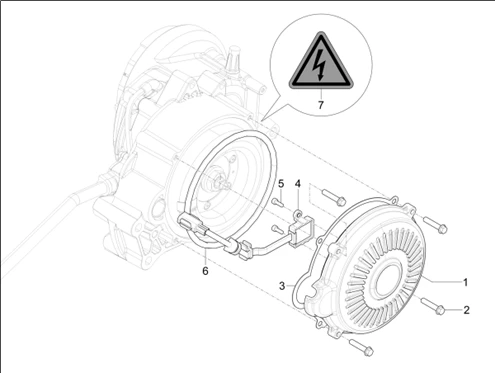

Moteur eléctrique : 01.03 COUVERCLE DE CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1316/_Primavera_Elettrica_TECH_RED_70_km-h_2024_(EMEA)_01.03.png)
1 |
1A009276 - COUVERCLE TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
2 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792- More informationQuantity required : 4 |
||||||
|
3 |
1A010643 - JOINT COUVERCLE More informationQuantity required : 1 |
||||||
|
4 |
CM291301 - DETECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/8/img/70918.jpg)
5 |
959559 - VIS More informationQuantity required : 2 |
||||||
|
6 |
848983 - JOINT More informationQuantity required : 1 |
||||||
|
7 |
1A014268 - ELECTRIC DANGER LABEL More informationQuantity required : 1 |
