Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

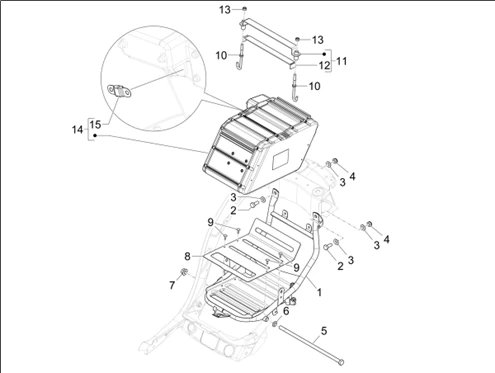

Circuit électrique : 06.04 BATTERIA DI TRAZIONE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1316/_Primavera_Elettrica_TECH_RED_70_km-h_2024_(EMEA)_06.04.png)
1 |
1B004253 - SUPPORT More informationQuantity required : 1 |
||||||
|
2 |
1C000608 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
3 |
178790 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
4 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/1/9/img/82319.jpg)
5 |
SCREW - FOR SWING ARM "PIAGGIO GENUINE PARTS" 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 VESPA GTS -597914 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/4/6/img/77146.jpg)
6 |
266845 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
7 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740- More informationQuantity required : 1 |
||||||
|
8 |
1B005187 - TAPIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/3/6/img/110236.jpg)
9 |
567642 - RIVET More informationQuantity required : 4 |
||||||
|
10 |
1B005958 - TIRANT More informationQuantity required : 2 |
||||||
|
11 |
1B0057565 - PLAQUE More informationQuantity required : 1 |
||||||
|
12 |
CM017711 - JOINT More informationQuantity required : 1 |
||||||
|
13 |
709052 - ECROU More informationQuantity required : 2 |
||||||
|
14 |
Batterie complète |
||||||
|
15 |
641444 - FUSIBLE 80A 58V More informationQuantity required : 1 |
