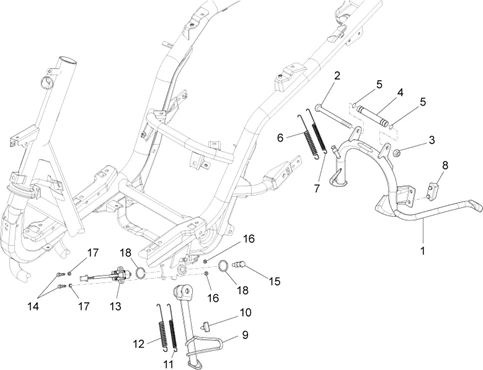

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/60/Fly_125_4T-3V_ie_E3_LEM_2012-2013_02.25.PNG)
1 |
6667014 - BEQUILLE CENTRALE * Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
6684124 - BEQUILLE CENTRALE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/3/4/2/img/90342.jpg)
2 |
VIS TH (10X130) ORIGINE PIAGGIO COMMUN A LA GAMME -668187 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
3 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -002440 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/1/img/67251.jpg)
4 |
ENTRETOISE DE BEQUILLE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -582298 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
5 |
JOINT AXE DE BEQUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -273754 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/9/img/67209.jpg)
6 |
RESSORT DE BEQUILLE CENTRALE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -581249 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/8/img/67208.jpg)
7 |
RESSORT DE BEQUILLE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -581248 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/3/img/67043.jpg)
8 |
TAMPON DE BEQUILLE ORIGINE PIAGGIO 50 VESPA LX 4T, VESPA-S 4T, ZIP 4T, LIBERTY 4T, 125 VESPA LX, VESPA -S, FLY, 400-500 BEVERLY -563984 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/0/1/2/img/90012.jpg)
9 |
BEQUILLE LATERALE ORIGINE PIAGGIO 125 FLY 2012>2013 -6663494 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/3/3/img/90233.jpg)
9 |
BEQUILLE LATERALE ORIGINE PIAGGIO 125 FLY 3V 2012> -6674244 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/8/img/67268.jpg)
10 |
TAMPON DE BEQUILLE ORIGINE PIAGGIO COMMUN LA GAMME SCOOTER ET MAXISCOOTER -582885 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/6/img/66286.jpg)
11 |
RESSORT DE BEQUILLE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -295788 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/7/img/66287.jpg)
12 |
RESSORT DE BEQUILLE LATERAL ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -295789 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/4/0/2/img/86402.jpg)
13 |
CONTACTEUR/BOUTON DE BEQUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -642559 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/9/5/img/90295.jpg)
14 |
VIS BTR (5X20) ORIGINE PIAGGIO COMMUN A LA GAMME -667890 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/5/9/img/90159.jpg)
15 |
667162 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
16 |
ECROU M5 ORIGINE PIAGGIO COMMUN A LA GAMME -020105 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
17 |
RONDELLE GROWER (5,1X8,5X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016405 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/2/img/65812.jpg)
18 |
JOINT TORIQUE BEQUILLE LATERALE ORIGINE PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -191189 Plus d'informationsQuantité requise : 2 |
