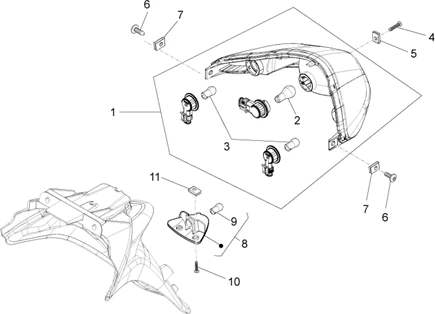

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/60/Fly_125_4T-3V_ie_E3_LEM_2012-2013_06.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/3/9/5/img/86395.jpg)
1 |
FEU ARRIERE ORIGINE PIAGGIO 50-125 FLY 2013> -642541- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
2 |
AMPOULE/LAMPE 12V 21/5W BAY15D / P21/5 ORIGINE PIAGGIO COMMUN A LA GAMME -129953 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
3 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE ORIGINE PIAGGIO COMMUN A LA GAMME -584332 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
4 |
VIS TORX (4,2X16) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178601 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
5 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
6 |
VIS TORX (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -CM179301 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/3/4/0/img/86340.jpg)
8 |
ECLAIRAGE DE PLAQUE IMMATRICULATION ORIGINE PIAGGIO 50-125 FLY 2012>, 125 LIBERTY 2011>2015 -642186000C- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
9 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE ORIGINE PIAGGIO COMMUN A LA GAMME -2920225 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/0/img/65400.jpg)
10 |
VIS PARKER (3.5X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -015859 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
11 |
ECROU TOLE (3.5 PARKER) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM017403 Plus d'informationsQuantité requise : 2 |
