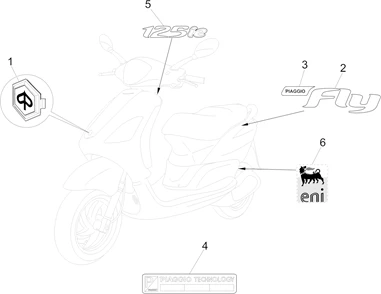

Châssis - parties plastiques - carrosseries : 02.38 MONOGRAMMES - DECORATIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/60/Fly_125_4T-3V_ie_E3_LEM_2012-2013_02.38.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/2/8/2/img/85282.jpg)
1 |
DECOR/LOGO/ECUSSON DE FACE / ROUE AVANT A CLIPSER ORIGINE PIAGGIO 300-350-500 MP3, 50-125 LIBERTY, 300-350 BEVERLY -1B003766 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/8/8/3/img/91883.jpg)
2 |
675137 - MONOGRAMME Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/5/0/4/img/75504.jpg)
3 |
DECO -1B000244- Plus d'informationsQuantité requise : 2 |
||||||
4 |
672200 - MONOGRAMME CARTER (ABOLI SANS REMPLACEMENT) Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/8/8/6/img/91886.jpg)
5 |
AUTOCOLLANT/STICKER/DECOR "125 IE" ORIGINE PIAGGIO 125 FLY 2012>2015 -675140 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
895839 - DECALCO Plus d'informationsQuantité requise : 1 |
