Eclatés de véhicule - PIAGGIO FLY 125 4T-3V ie E3 LEM 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

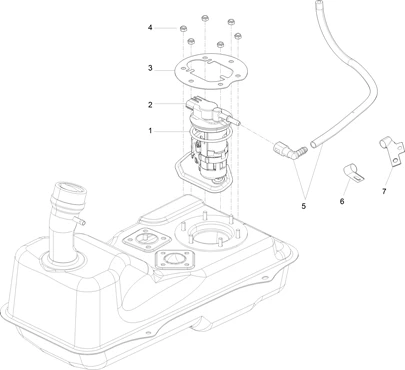

Châssis - parties plastiques - carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/60/Fly_125_4T-3V_ie_E3_LEM_2012-2013_02.53.PNG)
1 |
781056 - CIRCLIPS O-RING Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/4/8/7/img/86487.jpg)
2 |
POMPE A CARBURANT ORIGINE PIAGGIO 125 FLY 2012>2015, 125 MEDLEY 2016>2018/125, GTS VESPA 2016>2020 -642888 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
781063 - BAGUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
4 |
ECROU M5 ORIGINE PIAGGIO COMMUN A LA GAMME -804457 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/4/8/7/img/91487.jpg)
5 |
DURITE ESSENCE ORIGINE PIAGGIO 125 FLY 2012> -673828 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
675510 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
642993 - BANDE Plus d'informationsQuantité requise : 1 |
