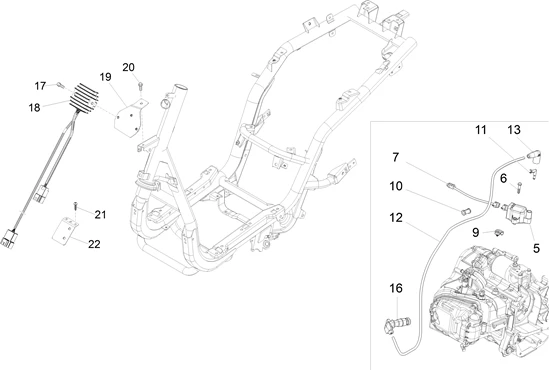

Installation électrique : 06.06 RÉGULATEURS DE TENSION - CENTRALES ELECTRONIQUES - BOBINE H.T.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/60/Fly_125_4T-3V_ie_E3_LEM_2012-2013_06.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/7/img/67947.jpg)
5 |
BOBINE ALLUMAGE ORIGINE PIAGGIO 125 FLY3 SOUPAPES, LIBERTY 3 SOUPAPES, VESPA LX 3 SOUPAPES, 125-350 YOURBAN, BEVERLY, X-10, V7, V9, V85 2017> -641901 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
6 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -B016792 Plus d'informationsQuantité requise : 2 |
||||||
7 |
643411 - ROULEAU A BRIDE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
641764 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
563989 - PASSE CABLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/2/img/67942.jpg)
11 |
INSERT ANTIPARASITE ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005>/APRILIA 125 ATLANTIC -1A024520 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
12 |
CABLE HAUTE TENSION ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -080341 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/0/3/img/67903.jpg)
13 |
ISOLANT BOBINE HAUTE TENSION ORIGINE PIAGGIO COMMUN A LA GAMME -641040 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/3/4/4/img/86344.jpg)
16 |
ANTIPARASITE ORIGINE PIAGGIO 125 FLY, VESPA LX, PRIMAVERA, VESPA-S, SPRINT, LIBERTY (MOTEUR 3 SOUPAPES) -642200 Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
642855 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
17 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -018639 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/8/7/img/81687.jpg)
18 |
REGULATEUR ORIGINE PIAGGIO 125 VESPA LX, VESPA-S, LXV, FLY, LIBERTY 2014< -58204R Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
642729 - BRIDE DE SUPPORT RÉGULATEUR DE TENSION Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
20 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
21 |
VIS TORX (4X16) TARAUD CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME -CM180701 Plus d'informationsQuantité requise : 2 |
||||||
|
22 |
642855 - SUPPORT Plus d'informationsQuantité requise : 1 |
