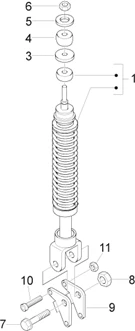

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/60/Fly_125_4T-3V_ie_E3_LEM_2012-2013_04.10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/2/9/img/90229.jpg)
1 |
AMORTISSEUR ARRIERE ORIGINE PIAGGIO 125 FLY 2012>2015 -667407 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/7/img/66057.jpg)
3 |
RONDELLE PLATE (8X37X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -267038 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/2/img/65782.jpg)
4 |
TAMPON SUPERIEUR AMORTISSEUR ARRIERE ORIGINE PIAGGIO COMMUN A LA SCOOTER 50 CC ET MAXISCOOTER 125-250 CC -178150 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
5 |
RONDELLE (8,15X13,75X4,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016408 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/5/9/8/img/65598.jpg)
6 |
ECROU (M8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -021108 Plus d'informationsQuantité requise : 1 |
||||||
7 |
030101 - VIS S03010100 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
8 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -002440 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/3/6/9/img/90369.jpg)
9 |
SUPPORT FIXATION AMORTISSEUR ARRIERE ORIGINE PIAGGIO 125 FLY 2012>2015 -668284 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
10 |
VIS BTR (8X50) ORIGINE PIAGGIO COMMUN A LA GAMME -844483 Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
ECROU M8 ORIGINE PIAGGIO COMMUN A LA GAMME -272176 Plus d'informationsQuantité requise : 2 |
