Eclatés de véhicule - PIAGGIO FLY 125 4T-3V ie E3 LEM 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

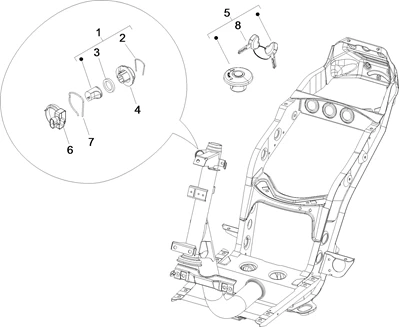

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/60/Fly_125_4T-3V_ie_E3_LEM_2012-2013_02.46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/7/2/img/154072.jpg)
1 |
BLOC SERRURE SCOOT ORIGINE PIAGGIO 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS/GILERA 50 RUNNER/APRILIA 50-125 SR, SPORT-CITY -1B006291 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
2 |
RESSORT D'ARRET SERRRURE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -298838 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
3 |
RONDELLE DE BLOC DIRECTION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -298594 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/2/1/5/img/92215.jpg)
4 |
CORPS DE SERRURE ORIGINE PIAGGIO 50-125 FLY 2012> -781126 Plus d'informationsQuantité requise : 1 |
||||||
5 |
781144 - KIT SERRURE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/0/img/67790.jpg)
6 |
ANTENNE ORIGINE PIAGGIO 125-300 MP3, YOURBAN, BEVERLY, VESPA GTS, X7, 125 VESPA LX, PRIMAVERA, LIBERTY, FLY/GILERA 125-250-300 NEXUS/APRILIA 125-300 SR-MAX -1D004058R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
7 |
RESSORT D'ARRET DE CONTACTEUR A CLE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -253937 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
781274 - EBAUCHE CLE * Plus d'informationsQuantité requise : 1 |
