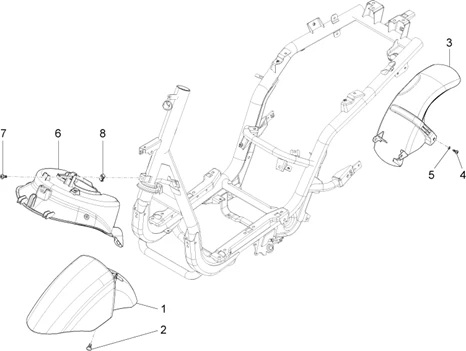

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/59/Fly_125_4T-3V_ie_E3_DT_2013_02.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/4/2/1/img/91421.jpg)
1 |
GARDE BOUE AVANT ORIGINE PIAGGIO 50-125 FLY BRUT A PEINDRE -673682 Plus d'informationsQuantité requise : 1 |
|||||||||
1 |
67368260BT - GARDE BOUE * Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
67368260DE - GARDE BOUE * Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/4/2/5/img/91425.jpg)
1 |
GARDE BOUE AVANT ORIGINE PIAGGIO 50-125 FLY 2012> NOIR 79/A -67368200ND Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/4/2/8/img/91428.jpg)
1 |
GARDE BOUE AVANT ORIGINE PIAGGIO 50-125 FLY 2012> ROUGE 894 -67368240R7 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
2 |
VIS TORX (6X22) CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME -CM179201 Plus d'informationsQuantité requise : 3 |
|||||||||
|
3 |
675119 - GARDE BOUE AR * Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
4 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
5 |
RONDELLE ELASTIQUE COURBE (8.4X15X0.8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -709047 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/2/5/6/img/91256.jpg)
6 |
PASSAGE DE ROUE/GARDE BOUE INTERIEUR AVANT ORIGINE PIAGGIO 50-125 FLY 2012> -673521 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
7 |
VIS TORX (6X16) AVEC EPAULEMENT ORIGINE PIAGGIO COMMUN A LA GAMME -CM179202 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 1 |
|||||||||
