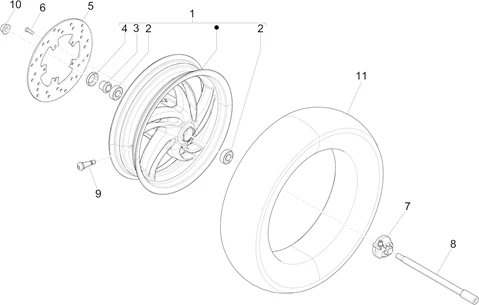

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/59/Fly_125_4T-3V_ie_E3_DT_2013_04.11.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/0/6/img/90206.jpg)
1 |
JANTE/ROUE AVANT ORIGINE PIAGGIO 125 FLY 2012>2015 -667204 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
2 |
ROULEMENT (15X35X11) DE ROUE AVANT ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -649910 Plus d'informationsQuantité requise : 2 |
||||||
3 |
564527 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/7/img/67057.jpg)
4 |
RONDELLE PARE POUSSIERE ROUE AVANT ORIGINE PIAGGIO 50 FLY, RUNNER, STAKER, TYPHOON 2016< -5644756 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/0/9/8/img/90098.jpg)
5 |
DISQUE DE FREIN AVANT ORIGINE PIAGGIO 50-125 FLY 2012>, 50-125 TYPHOON 2012> -666761 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/1/6/img/151116.jpg)
6 |
VIS TORX (6X20) AVEC FREIN FILET ORIGINE PIAGGIO COMMUN A LA GAMME -5A000656 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/6/6/3/img/95663.jpg)
7 |
ENTRAINEUR DE COMPTEUR ORIGINE PIAGGIO 50-125 FLY 2012>2015 -CM075505 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/4/4/img/90444.jpg)
8 |
AXE DE ROUE AVANT ORIGINE PIAGGIO 50-125 FLY 2012>, TYPHOON 2010>/APRILIA 50 SR MOTARD 2010>, SPORT-CITY ONE -668796 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
9 |
VALVE TUBELESS ORIGINE PIAGGIO COMMUN A LA GAMME -270991 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
10 |
ECROU (M12) AXE DE ROUE ORIGINE PIAGGIO COMMUN A LA GAMME -271740 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
598277 - PNEU 120/70-12 SAVA MC20 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
664014 - PNEU AV 120/70 - 12" CHENG SHIN Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
|
