Eclatés de véhicule - PIAGGIO FLY 125 4T-3V ie E3 DT 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

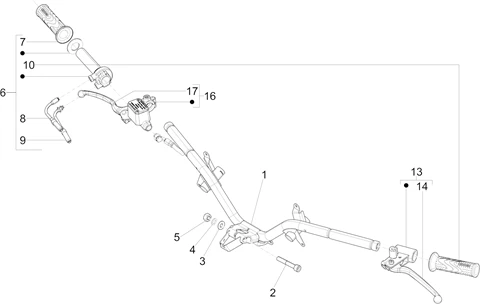

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/59/Fly_125_4T-3V_ie_E3_DT_2013_03.06.PNG)
1 |
GUIDON ORIGINE PIAGGIO 50-125 FLY 2012> -6738084- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
2 |
VIS BTR (10X65) ORIGINE PIAGGIO COMMUN A LA GAMME -655554 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
3 |
RONDELLE PLATE (10.3X22X2.5) ORIGINE PIAGGIO COMMUN A LA GAMME -178790 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
4 |
RONDELLE CRANTEE (10.3X17X2) ORIGINE PIAGGIO COMMUN A LA GAMME -012543 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
5 |
ECROU (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -015330 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
6686695 - MANCHON GAZ COMPLET Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/8/7/img/95787.jpg)
7 |
REVETEMENT DE POIGNEE DROIT ORIGINE PIAGGIO 50-125 FLY 2012>, 50 TYPHOON 2010> -CM084204 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/2/0/img/90420.jpg)
8 |
CABLE/COMMANDE/TRANSMISSION OUVERTURE DE GAZ ORIGINE PIAGGIO 125 FLY 2012> -668671 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/1/9/img/90419.jpg)
9 |
CABLE/COMMANDE/TRANSMISSION FERMETURE DE GAZ ORIGINE PIAGGIO 125 FLY 2012> -668670 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/8/6/img/95786.jpg)
10 |
REVETEMENT DE POIGNEE GAUCHE ORIGINE PIAGGIO 50-125 FLY 2012>, 50 TYPHOON 2010> -CM084203 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/1/8/img/87218.jpg)
13 |
POIGNEE GAUCHE COMPLETE ORIGINE PIAGGIO 50-125 FLY 2013>, 125 LIBERTY 2013> -651034 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/2/1/2/img/92212.jpg)
14 |
LEVIER DE FREIN GAUCHE ORIGINE PIAGGIO 50-125 LIBERTY 2015>, FLY 2015> -781120 Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
CM085402 - MA?T. CYL. FREIN AV Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/0/7/9/img/90079.jpg)
17 |
LEVIER DE FREIN DROIT ORIGINE PIAGGIO 50-125 FLY, LIBERTY, VESPA PRIMAVERA, SPRINT -666558 Plus d'informationsQuantité requise : 1 |
